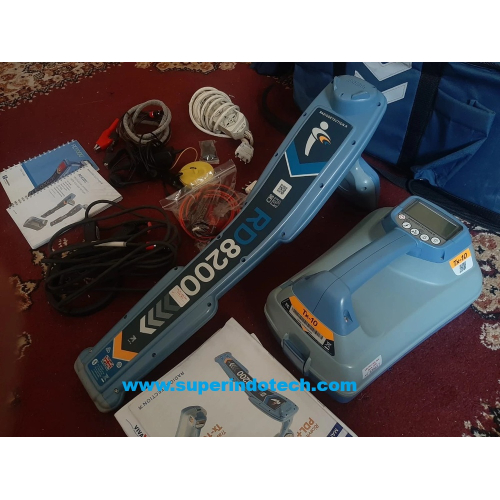

Used SPX Radiodetection RD8200 Cable Pipe Utility Locator With TX-10 Transmitter Kit

The RD8200 is our most advanced and capable precision locator, built to solve the two biggest challenges facing your operations: damage prevention and efficiency. Its sunlight-readable display and TruDepth readout give precise depth and current readings only when correctly oriented above the target, while high-performance audio and vibration alerts keep operators informed in noisy environments. Current Direction signal, Power Filters™ and Dynamic Overload Protection let it isolate a single target line and reject interference even in congested networks, near substations or high-voltage cabling.

Built-in safety features like the gyroscopic Swing Warning System and GPS-enabled usage logging encourage correct handling, help supervisors spot training needs early, and give you exportable proof of work to share with clients. Designed and built in Great Britain, it's light, well-balanced and comfortable for all-day use, with self-test for on-site confidence and dual Bluetooth connectivity ready for cloud-based data solutions.

Specifications:

Performance

Sensitivity
6E-15 Tesla
5µA at 1 meter (33kHz)

Dynamic range
140dB rms/√Hz

Selectivity
120dB/Hz

Depth measurement precision1
± 3%

Locate accuracy
± 5% of depth

Active Locate filter bandwidth
± 3Hz, 0 < 1kHz
± 10Hz, ≥ 1kHz

Start-up time
Less than 1 second

Maximum depth readout2
Metric: Cable / Pipe: 30m Sonde: 19.5m
Imperial: Cable / Pipe: 98' Sonde: 64'

Locate Functions

Active Locate Modes
Up to four, model dependent:
Peak
Peak (choice of combined Peak & Guidance or Peak & Null)
Guidance
Broad Peak
Null

Gain control
Guidance Mode: Automatic
Other modes: Manual gain using “ ” or “-” with one touch to return to center (50% of Full Scale)

DL Active frequencies
- 512Hz
- 640Hz
- 8kHz (8192Hz)
- 33kHz (32768Hz)
- 65kHz (65536Hz)

Sonde Frequencies
- 512Hz
- 640Hz
- 8kHz (8192Hz)
- 33kHz (32768Hz)

Passive Locate Modes
- Power
- Radio
- CPS (Cathodic Protection System)
- CATV - Cable TV

Specification SPX Radiodetection TX-10 :

Max Power Out Put
10W

Max Voltage Output
90V

Max Current Output
0.5A

Induction Field Strength
0.9

Active Frequencies
512Hz DC
570Hz DC
577Hz DC
640Hz DC
760Hz DC
870Hz DC
920Hz DC
940Hz DC Induction
4kHz (4096Hz) DC Induction Clamp
8kHz (8192Hz) DC Induction Clamp
9.8kHz (9820Hz) DC Induction Clamp
33kHz (32,768Hz) DC Induction Clamp
65kHz (65,536Hz) DC Induction Clamp
83kHz (83,077Hz) DC Induction Clamp
131kHz (131,072Hz) DC Induction Clamp
200kHz DC Induction Clamp

Fault Find
8kHz (8192Hz)

Information displayed
- Battery level indicator
- Operation mode readout
- Standby icon
- Output level indicator
- Mode of operation indication
- Induction
- Direct connection
- Clamp mode
- DC power connected indicator
- A-frame: Indicates when the transmitter is in Fault-Find Mode
- CD Mode: Indicates when the transmitter is in Current Direction Mode
- Voltage warning indicator: Indicates that the transmitter is outputting potentially hazardous voltage levels or high voltage across DC output leads
- Volume level indicator
- Pairing icon: Appears when the transmitter and locator are connected via iLOC
- Bluetooth icon: Indicates status of Bluetooth connection. Flashing icon means pairing is in progress
- Measurements: Voltage, current, power and impedance

INCLUDED :

Radiodetection TX-10 10 Watt Transmitter (-L/T)
Cables
Soft Carry Bag
Battery
Rechargeable Battery
Mains Charger
