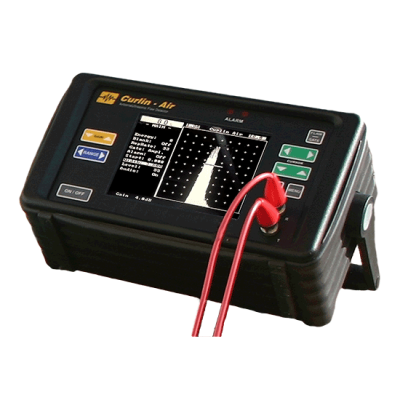

New NDT Systems Curlin Air - Coupled Ultrasonic Flaw Detector - Sale !!
The portable Curlin Air utilizes air-coupled ultrasonics and requires no surface preparation and no direct contact with test object. It performs sensitive inspections to detect voids, impact damage, and disbonds in a wide variety of water-incompatible materials. Originally used primarily for aerospace composites, the Curlin Air is referenced specifically by major aerospace manufacturers in their published inspection procedures. It has since evolved to evaluate a diverse range of materials including propellants and wood and foam panels.
$1,200.00
Contactless Air-Coupled Ultrasonic Flaw Detector
The portable Curlin Air utilizes air-coupled ultrasonics and requires no surface preparation and no direct contact with test object. It performs sensitive inspections to detect voids, impact damage, and disbonds in a wide variety of water-incompatible materials. Originally used primarily for aerospace composites, the Curlin Air is referenced specifically by major aerospace manufacturers in their published inspection procedures. It has since evolved to evaluate a diverse range of materials including propellants and wood and foam panels.
Air-coupled ultrasonic techniques are used when testing sensitive materials which are at risk of contamination during the testing processes or in situations when the cost of removing special coatings from the material to be tested is impractical. Wetting agents or powders typically used in conventional ultrasonic testing can lead to degradation of sensitive components.
Features:
Air coupled UT
Remarkable penetrating power
Non-contact, Through transmission, no surface preparation
A-trace display
Alarms: adjustable trigger level, audible and visual
Adjustable range, delay and gain
Programmable user setups
Unique Applications:
Carbon-fiber sandwich with honeycomb core:
Aerospace application for control surfaces, thrust reversers, cargo-door inspecting for skin-core disbonds or damaged core.
Carbon-Carbon:
Space application used for heat shields-inspecting for delaminations, disbonds in highly porous material.
Metal sandwich with foam core:
A typical construction used for fire doors and walls. Inspecting for voids in the foam core.
Solid Foam:
Inspecting for cracks or voids internally.
Drywall:
Used extensively in the construction industry
Multiple core sandwich:
Marine composites application with multiple core sheets and glue lines between- inspecting for skin to core and core to core disbonds.
Standard Curlin Air Kit Includes:
Curlin Air Instrument
Pelican style shipping case
User manual
Batteries
AC Charger
Optional Accessories:
Probes
Yokes
Magnetic Wheeled Carriers
Applications :
Composites
Foam core laminates
Glass fiber/ carbon fiber composites
Far-side defects
Bonded honeycomb structures
Construction materials:
Drywall, plywood, particleboard, cement
Structural urethane foam
Accessories :
Probes
Yoke
The portable Curlin Air utilizes air-coupled ultrasonics and requires no surface preparation and no direct contact with test object. It performs sensitive inspections to detect voids, impact damage, and disbonds in a wide variety of water-incompatible materials. Originally used primarily for aerospace composites, the Curlin Air is referenced specifically by major aerospace manufacturers in their published inspection procedures. It has since evolved to evaluate a diverse range of materials including propellants and wood and foam panels.
Air-coupled ultrasonic techniques are used when testing sensitive materials which are at risk of contamination during the testing processes or in situations when the cost of removing special coatings from the material to be tested is impractical. Wetting agents or powders typically used in conventional ultrasonic testing can lead to degradation of sensitive components.
Features:
Air coupled UT
Remarkable penetrating power
Non-contact, Through transmission, no surface preparation
A-trace display
Alarms: adjustable trigger level, audible and visual
Adjustable range, delay and gain
Programmable user setups
Unique Applications:
Carbon-fiber sandwich with honeycomb core:
Aerospace application for control surfaces, thrust reversers, cargo-door inspecting for skin-core disbonds or damaged core.
Carbon-Carbon:
Space application used for heat shields-inspecting for delaminations, disbonds in highly porous material.
Metal sandwich with foam core:
A typical construction used for fire doors and walls. Inspecting for voids in the foam core.
Solid Foam:
Inspecting for cracks or voids internally.
Drywall:
Used extensively in the construction industry
Multiple core sandwich:
Marine composites application with multiple core sheets and glue lines between- inspecting for skin to core and core to core disbonds.
Standard Curlin Air Kit Includes:
Curlin Air Instrument
Pelican style shipping case
User manual
Batteries
AC Charger
Optional Accessories:
Probes
Yokes
Magnetic Wheeled Carriers
Specifications:
Physical: | Dimensions: | 10.20" x 5.75" x 4.50" (259 x 146 x 114 mm) |
Weight: | 6.3 lbs. (2.9 kg.) | |
Case Construction: | Aluminum body, rubber end caps | |
Connector Type: | BNC | |
Keypad Type: | Tactile membrane feedback keys | |
Operating Temperature: | 32°F to 140°F (0°C to 60°C) | |
Power Source: | 5x D-sized NiMH or alkaline batteried (8-10 hrs.) or AC Mains | |
Display: | Type: | High Speed LCD |
Size: | 4.75" x 3.50" (121 x 89 mm) | |
Transducer: | Type: | AT1-Standard Transmitter and Receiver; 1.5" (38mm) diameter AT2 Mini-Receiver; 0.25" (6.4mm) diameter |
Frequency Range: | 50kHz | |
Measurements: | Thickness Range: | 1" to 200" (0.025 to 5.08m) in Air |
Velocity Range: | 0.005 to 0.750 in./µs (0.13 to 19.05 mm/µs) | |
Delay: | 0" to 199" (0 to 5.05m) in Air | |
Gain: | 115dB | |
Display Modes: | RF | |
Pulse Length: | Adjustable cycles in tone-burst | |
Units Displayed: | In. / mm | |
Alarms: | Audible and visual alarm modes | |
Gates: | Amplitude | |
Connectivity: | Storage: | Up to 50 setups |
Output: | Analog Output (optional) |
Applications :
Composites
Foam core laminates
Glass fiber/ carbon fiber composites
Far-side defects
Bonded honeycomb structures
Construction materials:
Drywall, plywood, particleboard, cement
Structural urethane foam
Accessories :
Probes
Yoke
