New Pinpoint Laser Microgage 2D Alignment And Measuring System - Sale !!
The Microgage 2D laser alignment tool can be adapted to a wide variety of industrial measuring and alignment requirements. Each receiver measures in two axial directions (X & Y) and can be used for checking straightness, flatness, parallelism, squareness, bores, spindles, and other alignment needs.
£3,748.34
The Microgage 2D laser alignment tool can be adapted to a wide variety of industrial measuring and alignment requirements. Each receiver measures in two axial directions (X & Y) and can be used for checking straightness, flatness, parallelism, squareness, bores, spindles, and other alignment needs.
How It Works
Capture precise measurements as small as 0.0001 inch (2.5 micron). The easy to use Microgage 2D laser transmitter and electrical receiver can be separated by a few inches up to 150 feet for large industrial projects. A highly collimated, low power laser beam is projected from the end of the laser housing. The electronic receiver picks up the laser beam allowing the display to provide a digital readout showing the height and lateral position of the laser beam. If the laser transmitter and receiver are resting on a common flat surface, the display will read zero. If the transmitter or the receiver is then raised off the surface, or moved side to side, the differential position will then be displayed. Combining the laser and receiver with various optics and mounting accessories allows the Microgage laser alignment tool to measure all sorts of two dimensional alignment parameters.
The Microgage 2D begins with a basic laser alignment kit that is compact, versatile and easy to use. Adding various precision alignment accessories and attachments expands the capabilities of the Microgage 2D to address virtually any industrial measuring and alignment application.
2D Display
Large LCD readout
The digital data of the laser’s position will read “0” for height & lateral readings if laser & receiver rest on the same plane & against a straight guide rail.
If the receiver is moved, the measurement readings will change accordingly.
On-board microprocessor stores up to one thousand measurement readings.
Durable enclosure
Runs on two C batteries (20 hour run time).
Capture Software
Capture will work and can be purchased to use with the Microgage 2D.
Capture is our Windows-based, proprietary alignment software.
Displays readings in large numerals and with graphical X/Y and moving chart plot.
Provides real-time measurement data in a customizable Excel format.
Analyzes industrial equipment and production machinery performance and alignment.
Works with up to 8 receivers.
Pre-installed routines and built-in instructions allow Capture™ to interface seamlessly with other packages and programs.
Digital Receiver
Compact optical receiver
Available in 1-inch, 0.75-inches, 0.5-inches, and 3 inches
Machined from durable aluminum
Convenient built-in mounting points
Built to withstand years of industrial use
2D Components

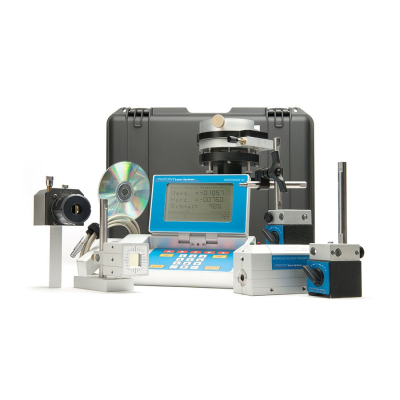

3 primary components: Laser transmitter, receiver & display
Specific application components:
90 Line Beam Benders
Cylindrical Lasers
Transparent Receivers
4 Axis Receivers
Wireless Receivers
2D Applications
Measures most machine geometries
Straightness, Flatness, Parallelism, Squareness, Bores, Spindles, and many others.
Equipment installations, repair, maintenance applications, and much more.
2D Customization
Custom receiver housing units
Laser housings
Laser light sources
OEM sub-systems
Software
Specifications :
Measuring System:
Measurement Resolution: 0.0001 inch (2.5 micron)
Measurement Range: ±0.350 inch dual axis X-Y ± 0.5” single axis (±9mm or ±13mm)
Operating Distance: 0 to 150 feet standard (> 150’ optimized)(45 meters)
Measurement Accuracy: ±0.0002 inch or 1% of measurement (5 micron)
Laser Characteristics:
Laser Source: Laser Diode, 635 Nm, < 1mW, Class IIIA (Class II Available)
Laser Beam Accuracy: < 2 arc-seconds
Laser Beam Repeatability: < 1 arc-second
Laser Level: Bubble, machinists level < 10 arc-second
Laser Power: 4 AA-Alkaline batteries
Laser Run Time: > 20 hours per battery set
Laser Controls: On/Off switch, laser on, low battery
Laser Dimensions: 8” long x 2” wide x 3” high (203mm x 51mm x 76mm)
Laser Mounting Points: 1/4-20 and 10-32 mounting holes
Laser Housing: Solid machined aluminum & hard anodized coating
Receiver Characteristics:
Active Detection Area: .750 inch x .750 inch (19mm x 19mm)
Protective Window: Bandpass filter, metallic coating
Receiver Dimensions: 2.00” high x 2.00” wide x 2.00” deep (51mm)
Receiver Mounting: 1/4-20 and 10-32 mounting holes
Receiver Cable: 10’ long, reinforced cladding, black
Display Characteristics:
Display Unit: Multi, dual-axis processing system
Display Inputs: Up to 4 dual-axis receivers at one time
Display Screen: LCD graphic screen 5.0” x 3.0” (127mm x 76mm)
Display Controls: Keypad, zero, function, multi-purpose keys
Display Information: X/Y data, signal, functions, alignment steps
Display Units: Inch, MM, Mils, Custom
Display Resolution: 0.0001 inch (2.5 micron)
Display Processing: Multiple user programs for alignment
Display Connections: 4 Receiver inputs, USB, Aux, Serial
Display Interface: USB & Serial RS232c
Interface Communication: Pinpoint Capture (Windows-based)
Display Power: 2 C-cell Alkaline
Display Run Time: >30 hours per battery set
Display Housing: Solid machined aluminum & hard anodized coating
Display Housing Design: Flip-up display, reversible handle
Display Housing Dimensions: 12” long x 5”wide x 2”high (305mm x 127mm x 51mm)
Operating Conditions: 30 degree to 130 degree F (–10 degree to 55 C), Humidity 0–95%, non-condensing.
Also you can check product : New Pinpoint Laser Microgage PRO Plus Next Generation Laser Measuring and Alignment - Sale !!
How It Works
Capture precise measurements as small as 0.0001 inch (2.5 micron). The easy to use Microgage 2D laser transmitter and electrical receiver can be separated by a few inches up to 150 feet for large industrial projects. A highly collimated, low power laser beam is projected from the end of the laser housing. The electronic receiver picks up the laser beam allowing the display to provide a digital readout showing the height and lateral position of the laser beam. If the laser transmitter and receiver are resting on a common flat surface, the display will read zero. If the transmitter or the receiver is then raised off the surface, or moved side to side, the differential position will then be displayed. Combining the laser and receiver with various optics and mounting accessories allows the Microgage laser alignment tool to measure all sorts of two dimensional alignment parameters.
The Microgage 2D begins with a basic laser alignment kit that is compact, versatile and easy to use. Adding various precision alignment accessories and attachments expands the capabilities of the Microgage 2D to address virtually any industrial measuring and alignment application.
2D Display
Large LCD readout
The digital data of the laser’s position will read “0” for height & lateral readings if laser & receiver rest on the same plane & against a straight guide rail.
If the receiver is moved, the measurement readings will change accordingly.
On-board microprocessor stores up to one thousand measurement readings.
Durable enclosure
Runs on two C batteries (20 hour run time).
Capture Software
Capture will work and can be purchased to use with the Microgage 2D.
Capture is our Windows-based, proprietary alignment software.
Displays readings in large numerals and with graphical X/Y and moving chart plot.
Provides real-time measurement data in a customizable Excel format.
Analyzes industrial equipment and production machinery performance and alignment.
Works with up to 8 receivers.
Pre-installed routines and built-in instructions allow Capture™ to interface seamlessly with other packages and programs.
Digital Receiver
Compact optical receiver
Available in 1-inch, 0.75-inches, 0.5-inches, and 3 inches
Machined from durable aluminum
Convenient built-in mounting points
Built to withstand years of industrial use
2D Components
3 primary components: Laser transmitter, receiver & display
Specific application components:
90 Line Beam Benders
Cylindrical Lasers
Transparent Receivers
4 Axis Receivers
Wireless Receivers
2D Applications
Measures most machine geometries
Straightness, Flatness, Parallelism, Squareness, Bores, Spindles, and many others.
Equipment installations, repair, maintenance applications, and much more.
2D Customization
Custom receiver housing units
Laser housings
Laser light sources
OEM sub-systems
Software
Specifications :
Measuring System:
Measurement Resolution: 0.0001 inch (2.5 micron)
Measurement Range: ±0.350 inch dual axis X-Y ± 0.5” single axis (±9mm or ±13mm)
Operating Distance: 0 to 150 feet standard (> 150’ optimized)(45 meters)
Measurement Accuracy: ±0.0002 inch or 1% of measurement (5 micron)
Laser Characteristics:
Laser Source: Laser Diode, 635 Nm, < 1mW, Class IIIA (Class II Available)
Laser Beam Accuracy: < 2 arc-seconds
Laser Beam Repeatability: < 1 arc-second
Laser Level: Bubble, machinists level < 10 arc-second
Laser Power: 4 AA-Alkaline batteries
Laser Run Time: > 20 hours per battery set
Laser Controls: On/Off switch, laser on, low battery
Laser Dimensions: 8” long x 2” wide x 3” high (203mm x 51mm x 76mm)
Laser Mounting Points: 1/4-20 and 10-32 mounting holes
Laser Housing: Solid machined aluminum & hard anodized coating
Receiver Characteristics:
Active Detection Area: .750 inch x .750 inch (19mm x 19mm)
Protective Window: Bandpass filter, metallic coating
Receiver Dimensions: 2.00” high x 2.00” wide x 2.00” deep (51mm)
Receiver Mounting: 1/4-20 and 10-32 mounting holes
Receiver Cable: 10’ long, reinforced cladding, black
Display Characteristics:
Display Unit: Multi, dual-axis processing system
Display Inputs: Up to 4 dual-axis receivers at one time
Display Screen: LCD graphic screen 5.0” x 3.0” (127mm x 76mm)
Display Controls: Keypad, zero, function, multi-purpose keys
Display Information: X/Y data, signal, functions, alignment steps
Display Units: Inch, MM, Mils, Custom
Display Resolution: 0.0001 inch (2.5 micron)
Display Processing: Multiple user programs for alignment
Display Connections: 4 Receiver inputs, USB, Aux, Serial
Display Interface: USB & Serial RS232c
Interface Communication: Pinpoint Capture (Windows-based)
Display Power: 2 C-cell Alkaline
Display Run Time: >30 hours per battery set
Display Housing: Solid machined aluminum & hard anodized coating
Display Housing Design: Flip-up display, reversible handle
Display Housing Dimensions: 12” long x 5”wide x 2”high (305mm x 127mm x 51mm)
Operating Conditions: 30 degree to 130 degree F (–10 degree to 55 C), Humidity 0–95%, non-condensing.
Also you can check product : New Pinpoint Laser Microgage PRO Plus Next Generation Laser Measuring and Alignment - Sale !!
- Availability: 25 In Stock
- Model: Microgage 2D
-
