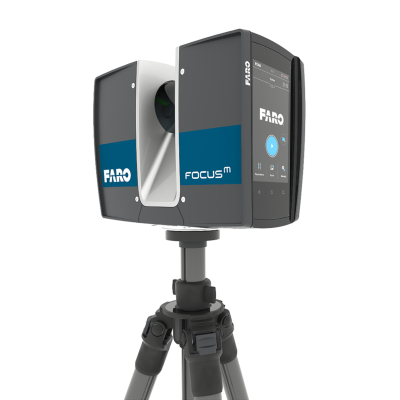

New FARO Focus M70 Laser Scanner - Sale !!
FARO Focus M70 Laser Scanner, short-range professional grade laser scanner, a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 meters. The ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.FARO Focus M 70 Laser Scanner
FARO Focus M70 Laser Scanner, short-range professional grade laser scanner, a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 meters. The ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.
Features
- SHORT-RANGE SCANNING - UP TO 70M: The FocusM 70 can record data up to 70 meters making it ideal for short-range measurements and small area applications
- COMPACT AND PORTABLE: The FocusM 70 has the size of only 230 x 183 x 103mm and a weight of just 4.2kg. The device is provided with a waterproof transportation and ergonomic carrying case for true portability
- HDR PHOTO OVERLAY: The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients
- BEST VALUE FOR MONEY: The FocusM 70 is a professional grade scanner with the highest return on investment in the market
- IP RATING - CLASS 54: With the sealed design, the FocusM 70 is certified with the industry standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences.
- TEMPERATURE: Extended temperature range allows scanning in challenging environments - take your Focus M to the desert or run a project in Antarctica
Benefits
- Scanning in rough environments while providing protection from dust, debris and water splashes
- The Focus M 70 delivers a full scanning workflow at best return on invest in the market
- Achieve confidence in scan results by using award winning FARO quality
- Maintain familiar workflows through freedom of choice in processing scan data in various software packages
- Easily navigate the scanner controls using the large and luminous touch-screen
FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS
| FARO FocusS Plus 350 | FARO FocusS Plus 150 | FARO FocusS 350 | FARO FocusS 150 | FARO FocusS 70 | FARO FocuS M70 | |
| Unambiguity Interval | 614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec 153m at 2 mil pts/sec | 614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec | 614m for up to 0.5 mil pts/sec | |||
| Range | ||||||
| 90% Reflectivity (white) | 0.6-350m | 0.6-150m | 0.6-350m | 0.6-150m | 0.6-70m | 0.6-70m |
| 10% Reflectivity (dark-gray) | 0.6-150m | 0.6-150m | 0.6-150m | 0.6-150m | 0.6-70m | 0.6-70m |
| 2% Reflectivity (black) | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-750m |
| Range Noise | ||||||
| @10m 90% (white) | 0.1 | 0.3 | 0.7 | |||
| @10m 10% (dark-gray) | 0.3 | 0.4 | 0.8 | |||
| @10m 2% (black) | 0.9 | 1.3 | 1.5 | |||
| @25m 90% (white) | 0.2 | 0.3 | 0.7 | |||
| @25m 10% (dark-gray | 0.5 | 0.5 | 0.8 | |||
| @25m 2% (black) | 1.6 | 2.0 | 2.1 | |||
| Max. Measurement Speed (mil. pts/sec) | Up to 2 | Up to 1 | Up to 0.5 | |||
| Ranging Error³ (mm) | ±1 | ±3 | ||||
| Angular Accuracy? | 19 arcsec for vertical/horizontal angles | not specified | ||||
| 3D Point Accuracy | 2 @10m 3.5 @25m | 2 @10m 3.5 @25m | not specified | |||
| ADDITIONAL PERFORMANCE SPECIFICATIONS | |
| Color Resolution | Up to 165-megapixel color |
| HDR Camera | Exposure bracketing 2x, 3x, 5x |
| Parralax | Minimized due to co-axial design |
| Field of View | 300°vertical? / 360° horizontal |
| Step Size | 0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal |
| Max. Scan Speed | 97Hz (vertical) |
| Laser Class | Laser Class 1 |
| Wavelength | 1550nm |
| Beam Divergence | 0.3mrad (1/e) |
| Beam Diameter at Exit | 2.12mm (1/e) |
| Data Storage | SDHC, SDXC, 32GB; max. 512GB card |
| Scanner Control | Via touch screen display and WLAN connection, Access by mobile devices with HTML5 |
| Interface Connection | |
| WLAN | 802.11n (150Mbit/s), as access point or client in existing networks |
| Dual Axis Compensator | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2 |
| Height Sensor | Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan |
| Compass | The electronic compass gives the scan an orientation |
| GNSS | Integrated GPS & GLONASS |
| On-Site Compensation | Creates current quality report and improves compensation automatically |
| Accessory Bay* | The accessory bay connects versatile accessories to the scanner |
| Inverse Mounting | Yes |
| Real-time, On-site Registration in SCENE | Connects to SCENE, real-time scan processing and registration, overview map |
| Electronic Automation Interface | Available as option, only at point of sale |
| Digital Hash Function | Scans are cryptographically hashed and signed by the scanner |
| Rescanning of Distant Targets | Defined areas recaptured in higher resolution at a greater distance |
| Retake Photos | Select individual photographs with unwanted objects and retake them |
| Power Supply | 19V (external supply), 14.4V (internal battery) |
| Power Consumption | 15W idle, 25W scanning, 80W charging |
| Battery Service Life | 4.5 hours |
| Temperature | Operating: 5° - 40° C | Extended Operating?: -20° - 55° C | Storage: -10°- 60°C |
| Ingress Protection (IP) Rating Class | IP54 |
| Humidity Resistance | Non-condensing |
| Weight | 4.2 kg (including battery) |
| Size/Dimensions | 230 x 183 x 103mm |
| Maintenance / Calibration | Recommended annual |
FARO SCENE SOFTWARE
FARO SCENE is specifcally designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images. The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
- Automated target-less scan registration
- SCENE WebShare Cloud integration
- Super-crisp visualisation
- Easy processing of large scan projects
- Plug-Ins for extended functionality
- Homogenisation of point clouds
Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions.
Includes:
- Faro FocusM 70 Laser Scanner with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54, Calibration Certificate, Quick Start Guide, Rugged Transport Case
- Battery Power Block, Battery Power Dock, 90W Power Supply
- AC power cable
- External power supply unit with cable
- Optic Cleaning Fluid, Optic Cleaning Tissues
- 32GB SD Card, SD Card Reader, SD Card Cover
- Allen Wrench
- Faro Scene Licence (USB stick with SCENE software and manual)
- Scanner transport and carry case
- Tripod
- 1-Year Faro warranty
- Availability: 7 In Stock
- Model: Focus M 70
-
