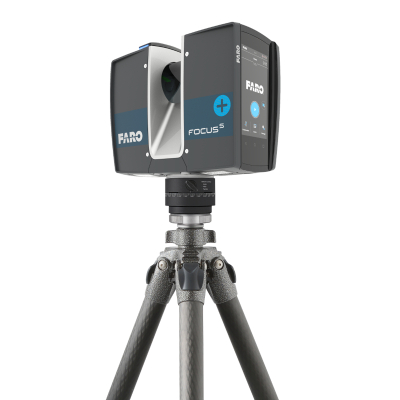

New FARO Focus S150 Plus Laser Scanner - Sale !!

The ultra-portable FARO Focus S 150 Plus laser scanner allows you to quickly and precisely measure objects and buildings. It digitizes building facades, complex structures, production and supply sites, accident scenes and large-scale construction elements, provides realistic and detailed results with a range of 150 meters per scan.
$5,915.00
Qty:

New FARO Focus S 150 Plus laser scanner, Calibrated, 2 years warranty!

The ultra-portable FARO Focus S 150 Plus laser scanner allows you to quickly and precisely measure objects and buildings. It digitizes building facades, complex structures, production and supply sites, accident scenes and large-scale construction elements, provides realistic and detailed results with a range of 150 meters per scan.

New features of the FARO S150 :

  • Faster and more reliable on-site registration guarantees the efficiency of the scanning and on-site processing process
  • Full visibility of the scanning process thanks to the status indicator allows users to know the progress level of each scanning
  • The upgrade function allows users to configure and, with a single click, check the severity level of the laser scanner
  • Ensuring reliable data with better noise reduction

FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

 FARO FocusS Plus 350FARO FocusS Plus 150FARO FOCUSS
350
FARO FOCUSS
150

FARO FOCUSS
70

FARO FOCUS
M70
Ranging Unit
Unambiguity Interval614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
153m at 2 mil pts/sec
614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
614m for up to
0.5 mil pts/sec
Range
90% Reflectivity (white)0.6-350m0.6-150m0.6-350m0.6-150m0.6-70m0.6-70m
10% Reflectivity (dark-gray)0.6-150m0.6-150m0.6-150m0.6-150m0.6-70m0.6-70m
2% Reflectivity (black)0.6-50m0.6-50m0.6-50m0.6-50m0.6-50m0.6-750m
Range Noise
@10m 90% (white)0.10.30.7
@10m 10% (dark-gray)0.30.40.8
@10m 2% (black)0.91.31.5
@25m 90% (white)0.20.30.7
@25m 10% (dark-gray0.50.50.8
@25m 2% (black)1.62.02.1
Max. Measurement Speed (mil. pts/sec)Up to 2 Up to 1  Up to 0.5
Ranging Error³ (mm)±1±3
Angular Accuracy?19 arcsec for vertical/horizontal anglesnot specified
3D Point Accuracy2 @10m 3.5 @25m2 @10m 3.5 @25mnot specified



ADDITIONAL PERFORMANCE SPECIFICATIONS
Color Unit
Color ResolutionUp to 165-megapixel color
HDR CameraExposure bracketing 2x, 3x, 5x
ParralaxMinimized due to co-axial design
Deflection Unit
Field of View300°vertical? / 360° horizontal
Step Size0.009 (40,960 3D-pixel on 360°)
vertical / 0.009 (40,960 3D-pixel
on 360°) horizontal
Max. Scan Speed97Hz (vertical)
Laser (Optical Transmitter)
Laser ClassLaser Class 1
Wavelength1550nm
Beam Divergence0.3mrad (1/e)
Beam Diameter at Exit2.12mm (1/e)
Data Handling and Control)
Data StorageSDHC, SDXC, 32GB; max. 512GB card
Scanner ControlVia touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN802.11n (150Mbit/s), as access point or client in existing networks



ADDITIONAL FEATURES
Dual Axis CompensatorPerforms a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height SensorVia an electronic barometer, the height relative to a fixed point can be detected and added to a scan
CompassThe electronic compass gives the scan an orientation
GNSSIntegrated GPS & GLONASS
On-Site CompensationCreates current quality report and improves compensation automatically
Accessory Bay*The accessory bay connects versatile accessories to the scanner
Inverse MountingYes
Real-time, On-site Registration in SCENEConnects to SCENE, real-time scan processing and registration, overview map
Electronic Automation InterfaceAvailable as option, only at point of sale
Digital Hash FunctionScans are cryptographically hashed and signed by the scanner
Rescanning of Distant TargetsDefined areas recaptured in higher resolution at a greater distance
Retake PhotosSelect individual photographs with unwanted objects and retake them



GENERAL SPECIFICATIONS
Power Supply19V (external supply), 14.4V (internal battery)
Power Consumption15W idle, 25W scanning, 80W charging
Battery Service Life4.5 hours
TemperatureOperating: 5° - 40° C | Extended Operating?: -20° - 55° C | Storage: -10°- 60°C
Ingress Protection (IP) Rating ClassIP54
Humidity ResistanceNon-condensing
Weight4.2 kg (including battery)
Size/Dimensions230 x 183 x 103mm
Maintenance / CalibrationRecommended annual


FARO Focus S 150 for sale includes:

  •     FARO Focus S 150
  •     Calibration certificate
  •     2 batteries
  •     Charger
  •     32GB SD / USB adapter
  •     Carbon tripod
  •     Tripod adapter
  •     Scene software dongle
  •     Transport case
  • Availability: 15 In Stock
  • Model: S150 Plu
  • Brand: FARO
