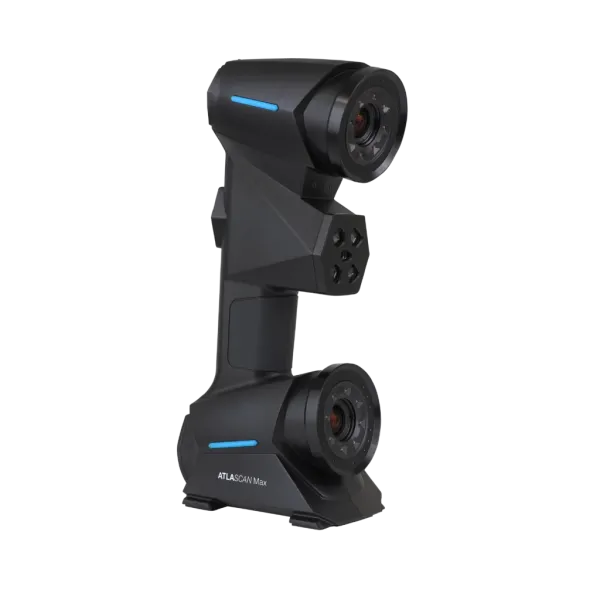

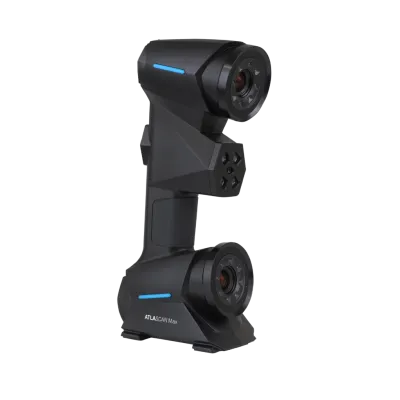

New Hexagon ATLASCAN Max Handheld 3D scanners Sale !!

From Hexagon’s first-ever range of handheld 3D scanners, the ATLASCAN Max allows you to easily scan whatever you want, wherever you want-just use your hands. Multi-mode and dynamic scanning put you in control of adapting the scanning workflow to specific application needs without interruption.

Wireless-enabled handheld 3D scanner for easy measurement anywhere. Scan where needed without restrictions-ATLASCAN Max can reach into hidden areas and see inside deep cavities, with no line-of-sight limitations. A lightweight handheld 3D scanner makes it straightforward to take the inspection process to the measurement object instead of bringing the part to the quality room. Break free from cables and referencing hardware with complete wireless connectivity.

Features and benefits

Freedom of movement
Reach into hidden areas and cavities, get the right inspection angle without line-of-sight restrictions, scan at height, at distance, on the shop floor or in the field

Wireless Scanning Module
Set yourself free from movement-limiting cables and referencing hardware with the option of full wireless functionality

Multi-size target recognition
Maximise efficiency by using different target sizes (3/6/12 /16 mm) for different applications during the scanning process.

Hole Flash Capture technology
Rapid simultaneous inspection of multiple circular and slotted features speeds up the workflow for a key industrial inspection challenge

Truly handheld scanning
Take the part in your hand and the scanner in the other for a very quick scan process that requires no complex part fixturing thanks to Dynamic Scanning

3 scan modes
Standard, Fine and Line scanning modes let you tailor your scanner performance to the application at hand, for greater efficiency or resolution as needed

Combine scanning mode results
Data collected with different scanning modes is seamlessly combined within the same point-cloud/mesh for ease of analysis and reporting

Instant visual feedback
Know you’re scanning correctly without returning to the control computer with built-in LED feedback system on the handset

Lightweight ergonomic design
Fits perfectly in the hand and light enough to take anywhere and use comfortably for long inspection projects

Unstable measurement
Even challenging environment conditions with extreme noise and vibration are no problem for Dynamic Scanning

VDI/VDE certification
Results are certified in line with the VDI/VDE 2634 to assure reliability and comparability of measurement

Automation ready
The ATLASCAN Max is ready for straightforward third-party integration within automated inspection systems

Change modes on-the-fly
Switch between scanning modes during measurement, directly from the handset, allowing you to fine-tune performance not just to the application but individual sections of the application

Large standoff
Collect data from further away from the part, making it easier to access internal inspection areas such as tooling cavities, as well enabling automation system integration with lower collision risk

Galaxy mode
Thanks to the dual-camera system and built-in software algorithm, volumetric accuracy can be simply controlled by scanning the rectangle scale to allow quick changes during an inspection task

SPECIFICATIONS :

Scanning mode
Standard/line mode
Fine mode

Measurement rate
3 000 000 pts/s
1 680 000 pts/s

Scanning area
Up to 600×550 mm (line mode 300 mm)

Light source
26 blue laser lines single blue laser line 14 blue laser lines

Resolution
Up to 0.01 mm

Accuracy
Up to 0.02 mm

With targets
Volumetric accuracy-standard (0.02 0.04 mm/m )
Volumetric accuracy with scale bar ( 1 0.02 0.03 mm/m )
Hole accuracy ( 2 up to 0.03 mm )
Hole volumetric accuracy ( 2 0.03 0.04 mm/m )

Stand-off distance
325 mm 200 mm

Depth of field
450 mm 200 mm

Depth of field (@furthest range)
550 mm

Weight
1 kg

Dimensions
295×135×75 mm

Connection standard
USB 3.0

Working temperature
-10 to 40°C

Working humidity (non-condensing)
10%-90%

Export formats
.stl, .ply, .obj, .txt, .xyz, .asc. etc., customizable

Compatible software
Hexagon (Inspire, PC-DMIS, DESIGNER)
Third party software (PolyWorks, Geomagic/Oqton, Metrologic and any other software that able to import point clouds or STL file format)
