Used Creaform HandySCAN 700 Elite Silver Series

Used Creaform HandySCAN 700 Elite Silver Series - Sale !!

Featuring accuracy, portability, simplicity, versatility, and a trusted patented technology, the SILVER Series captures highly accurate and repeatable 3D measurements of any complex surface in any location.

$5,125.00

Qty:

Total Price:

Free Shipping

Add to Cart Buy Now

Technical Specifications

Proven and trusted technology that provides accuracy, portability, simplicity, and versatility to your innovative applications.

	HandySCAN 307™	HandySCAN 307™\|Elite	HandySCAN 700™\|Elite

Accuracy⁽¹⁾	Up to 0.040 mm (0.0016 in)	Up to 0.030 mm (0.0012 in)
Volumetric accuracy⁽²⁾ (based on part size)	0.020 mm 0.100 mm/m (0.0008 in 0.0012 in/ft)	0.020 mm 0.060 mm/m (0.0008 in 0.0007 in/ft)
Volumetric accuracy with MaxSHOT Next \|Elite⁽³⁾	0.020 mm 0.015 mm/m (0.0008 in 0.00018 in/ft)
Measurement resolution	0.100 mm (0.0039 in)	0.050 mm (0.0019 in)
Mesh resolution	0.200 mm (0.0078 in)
Measurement rate	480,000 measurements/s
Light source	7 red laser crosses	7 blue laser crosses	7 blue laser crosses ( 1 extra line)
Laser class	2M (eye-safe)
Scanning area	275 x 250 mm (10.8 x 9.8 in)
Stand-off distance	300 mm (11.8 in)
Depth of field	250 mm (9.8 in)
Part size range (recommended)	0.1–4 m (0.3–13 ft)
Software	VXelements
Output formats	.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software⁽⁴⁾	3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight	0.85 kg (1.9 lb)
Dimensions (LxWxH)	77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in)
Connection standard	1 X USB 3.0
Operating temperature range	5-40 °C (41-104 °F)
Operating humidity range (non-condensing)	10-90%
Certifications	EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents	CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, in 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X

HandySCAN 307™

HandySCAN 307™|Elite

HandySCAN 700™|Elite

Accuracy⁽¹⁾

Up to 0.040 mm
(0.0016 in)

Up to 0.030 mm
(0.0012 in)

Volumetric accuracy⁽²⁾
(based on part size)

0.020 mm 0.100 mm/m
(0.0008 in 0.0012 in/ft)

0.020 mm 0.060 mm/m
(0.0008 in 0.0007 in/ft)

Volumetric accuracy with MaxSHOT Next |Elite⁽³⁾

0.020 mm 0.015 mm/m
(0.0008 in 0.00018 in/ft)

Measurement resolution

0.100 mm
(0.0039 in)

0.050 mm
(0.0019 in)

Mesh resolution

0.200 mm
(0.0078 in)

Measurement rate

480,000 measurements/s

Light source

7 red laser crosses

7 blue laser crosses

7 blue laser crosses
( 1 extra line)

Laser class

2M
(eye-safe)

Scanning area

275 x 250 mm
(10.8 x 9.8 in)

Stand-off distance

300 mm
(11.8 in)

Depth of field

250 mm
(9.8 in)

Part size range
(recommended)

0.1–4 m
(0.3–13 ft)

Software

VXelements

Output formats

.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf

Compatible software⁽⁴⁾

3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)

Weight

0.85 kg
(1.9 lb)

Dimensions
(LxWxH)

77 x 122 x 294 mm
(3.0 x 4.8 x 11.6 in)

Connection standard

1 X USB 3.0

Operating temperature range

5-40 °C
(41-104 °F)

Operating humidity range
(non-condensing)

10-90%

Certifications

EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE

Patents

CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, in 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X

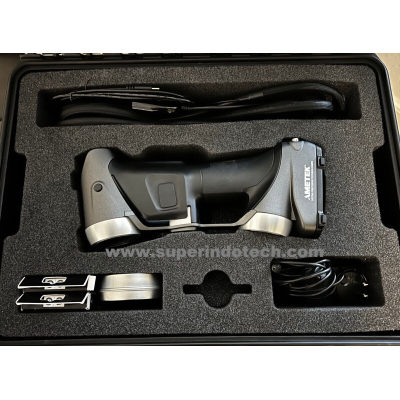

Included:

HandySCAN 700 Elite Silver Series Handheld 3D Laser Scanner

USB Cable

Power Supply

Calibration Plate

Reflective Adhesive Scanning Targets
Magnetic Reflective Targets

VX Elements Data Acquisition Software link to the installer

Availability: 9 In Stock

Model: HandySCAN 700 Elite
