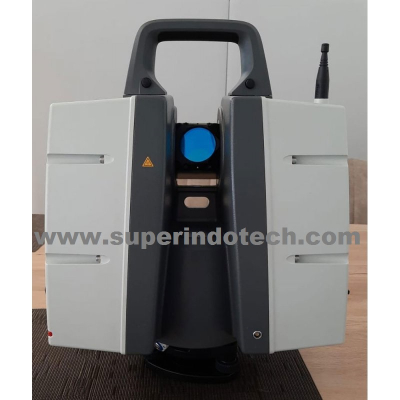

Used Leica ScanStation P40 3D Laser Scanner - Sale !!
Leica ScanStation P40 deliver highest quality 3D data and High-Dynamic Range (HDR) imaging at an extremely fast scan rate of 1 million points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.
$6,080.00
SPECS :
SYSTEM ACCURACY
Accuracy of single measurement
Range accuracy 1.2 mm 10 ppm over full range
Angular accuracy 8” horizontal; 8” vertical
3D position accuracy 3 mm at 50 m; 6 mm at 100 m
Target acquisition ** 2 mm standard deviation at 50 m
Dual-axis compensator Liquid sensor with real-time onboard compensation,
selectable on/off, resolution 1”, dynamic range ± 5',
accuracy 1.5”
DISTANCE MEASUREMENT SYSTEM
Type Ultra-high speed time-of-flight enhanced by Waveform
Digitising (WFD) technology
Wavelength 1550 nm (invisible) / 658 nm (visible)
Laser class 1 (in accordance with IEC 60825:2014)
Beam divergence < 0.23 mrad (FWHM, full angle)
Beam diameter at front window ≤3.5 mm (FWHM)
Range and reflectivity Minimum range 0.4 m
Maximum range at reflectivity
120 m 180 m 270 m
P30 18 % – –
P40 8% 18% 34 %
Scan rate Up to 1,000,000 points per second
Range noise 0.4 mm rms at 10 m
0.5 mm rms at 50 m
Field-of-View
Horizontal 360°
Vertical 290°
Data storage capacity 256 GB internal solid-state drive (SSD) or external USB device
Communications/Data transfer Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device
Onboard display Touchscreen control with stylus, full colour VGA graphic display (640 × 480 pixels)
Laser plummet Laser class 1 (IEC 60825:2014)
Centring accuracy: 1.5 mm at 1.5 m
Laser dot diameter: 2.5 mm at 1.5 m
Selectable ON/OFF
IMAGING SYSTEM
Internal camera
Resolution 4 MP per each 17° × 17° colour image; 700 MP for panoramic image
Pixel size Video 2.2 µm Streaming video with zoom; auto-adjusts to ambient lighting
White balancing HDR Sunny, cloudy, warm light, cold light, custom Tonemapped / full range
External camera Canon EOS 60D/70D/80D/90D supported
POWER
Power supply 24 V DC, 100 – 240 V AC
Battery type 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable)
Duration Internal > 5.5 h (2 batteries)
External > 7.5 h (room temp.)
ENVIRONMENTAL
Operating temperature –20°C to 50°C / –4°F to 122°F
Storage temperature –40°C to 70°C / –40°F to 158°F
Humidity 95 %, non-condensing
Dust/Water Solid particle/liquid ingress protection IP54 (IEC 60529)
PHYSICAL
Scanner
Dimensions (D × W × H)
Weight 238 mm × 358 mm × 395 mm / 9.4”× 14.1”× 15.6”
12.25 kg / 27.0 lbs, nominal (w/o batteries)
Battery (internal)
Dimensions (D × W × H)
Weight 40 mm × 72 mm × 77 mm / 1.6”× 2.8”× 3.0”
0.4 kg / 0.9 lbs
Mounting Upright or inverted
Included:
Leica ScanStation P40
GVP645, ScanStation transport container
GDF323 Tribrach PRO without optical plummet
4x GEB242, Large Li-Ion Battery 14.8V/5.8Ah (requires pro charger) for MS/TS/TM50 instruments
GKL311 Single Charger Prof 3000. Charger for one Li-Ion battery including AC/DC adaptor and cigarette lighter cable thumbnail
GEV228,ScanStation Pxx data cable, 2.5m, standard Ethernet Jack to Lemo (8 pin). Connects ScanStation Pxx with Computer
GHM008, Scanner height meter
GHT196, Distance holder for height meter.
Cyclone CD-ROM
1 Year ScanStation P40 CCP Basic
Additional Accessories
B&W scan targets and target accessories
Range of Customer Care Products (CCP) that include support, hardware & software maintenance and extended warranty
External battery with charging station, AC power supply and power cable
Professional charger for internal batteries
AC power supply for scanner
Tripod, tripod star, rolling base
Adapter for upside down mounting
