Trimble X9 3D Laser Scanner

The power to do more, on your terms.

The Trimble X9 3D laser scanning platform leverages proven Trimble technology to deliver the range, accuracy, speed and sensitivity you need to do more. With flexible licensing plan options, choose the scanning functionality that fits your project needs.

Benefits and performance
The X9 is a versatile reality capture solution for surveying, building construction, oil and gas, rail, forensics, monitoring, tunneling, mining and more.

A solution that best fits your needs
Customize your X9 with flexible configurations. Choose the model that fits your needs, from Core to Premium, ensuring the perfect option for every project.

Proven innovations and simple workflows
Automatic calibration, self-leveling and Trimble Perspective software ensure scanner performance, easy setup and comprehensive in-field registration workflows.

Built on proven Trimble laser scanning technologies that include automatic instrument calibration, self-leveling and laser pointer for georeferencing, the Trimble X9 with Trimble Perspective software, delivers from field to office with confidence.

Proven
Built upon innovative and trusted Trimble technology.

Versatile
Performance and function to meet changing project requirements.

Reliable
Ease of use with dependable data and robust design for demanding environments.

Trimble X9 3D laser scanner features

Dependability

- Self-calibrating for dependable data every scan.
- Survey grade self-leveling for fast, easy setup.
- IP55 environmental protection against dust and water.
- Wide operating temperature range to keep you working all year long.

Performance

- Fast scan times of less than 1 minute can be reached for fast project completion.
- 150 m range to put more projects within reach.
- High accuracy and low range noise point cloud data for detailed digital twins.

Versatility

- High-speed scanning up to 1 million pts/s.
- Better range, angular accuracy and data quality to support a wider range of applications.
- Enhanced sensitivity for standard scans to capture difficult dark or shiny surfaces.
- Flexible operation with tablet, phone, or one-button workflow.

Trimble Perspective Software

In-field registration.
In-field 3D data visualization.
Georeferencing with laser pointer and precision point.
Area scan for higher density on critical areas.

Trimble X9 Applications:

Topographic / General Surveys
Civil Infrastructure
Industrial Survey
Forensics
Cultural Heritage
Digital Twin
Tank - Calibration & Inspection
Ship Building Surveys

GENERAL SPECIFICATIONS

WEIGHT AND DIMENSIONS
Instrument (including battery)
6.045 kg (13.33 lbs)

Internal battery
0.35 kg

Dimensions
178 mm (W) × 353 mm (H) × 170 mm (D)

POWER SUPPLY
Battery type
Rechargeable Li-Ion battery 11.1V, 6.5Ah (Standard for Trimble optical instruments)
Typical duration
3.5 hours per battery (3 batteries included)

ENVIRONMENTAL
Operating temperature
-20 °C to 50 °C (-4 °F to 122 °F)

Storage temperature
-40 °C to 70 °C (-40 °F to 158 °F )

Ingress protection rating
IP55 (dust protected and water jet)

Relative humidity
95%

Equipment pollution degree
4

OTHERS
Laser pointer
Class 2 laser with a wavelength of 620–650 nm

Remote control
Trimble T10x tablet or comparable Windows® 10 tablet or laptop via WLAN or USB cable

Push button
One-button scan operation

Communications/Data transfer
WLAN 802.11 A/B/G/N/AC or USB Cable

Data storage
Standard SD Card (32 GB SDHC included)

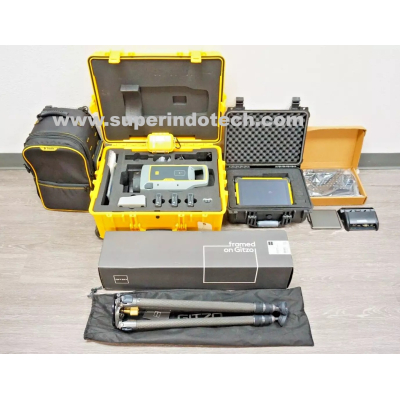

Included:

Two Rechargeable Batteries
Dual-Battery Charger with Power Supply & Cable
USB Communication Cable
32GB SD Card
Cleaning Cloths
Documentation Package:
Quick Start Guide
Warranty Card
Factory Instrument Test Certificate
Gizmo Carbon Fiber Tripod for stability and ease of setup
Pelican Carry Case with Wheels for safe and convenient transport
