Used Artec Ray 3D Laser Scanner - Sale !!
The fastest and most accurate long-range 3D scanner with laser technology for precise capture of large objects such as wind turbines, ship propellers, airplanes and buildings. Producing 3D scans of the highest quality, Artec Ray scans with submillimeter distance precision and best in class angular accuracy. As a result, data capture is noticeably cleaner than that from other 3D laser scanners, with noise levels at an absolute minimum. This speeds up data processing significantly, making it a hassle free job.
$6,850.00
Accessible and convenient 3D data capture
Portable and compact, this versatile long-range LIDAR solution is the latest in 3D laser scanning. An inbuilt battery lets you scan both indoors and outdoors for up to 4 hours, without a need for a power source nearby, making this a perfect solution for onsite 3D scanning.
Advanced software compatibility
3D scan and process data directly in the powerful Artec Studio software with a wide range of comprehensive tools available, then seamlessly export to Geomagic Design X at the touch of a button to make the most out of your 3D laser scanning experience.
Advanced software compatibility 3D scan and process data directly in the powerful Artec Studio software with a wide range of comprehensive tools available, then seamlessly export to Geomagic Design X at the touch of a button to make the most out of your 3D laser scanning experience.
Control Artec Ray with your phone or tablet
Using the Artec Remote app, you can easily scan all angles of a large object without being tethered to a computer. The scanning process can be controlled by any mobile device or tablet via Wi-Fi. The Artec Remote is available for iOS and Android.
The Complete 3D Scanning Package
Pair Artec Ray with an Artec handheld 3D scanner, such as Eva or Spider, to effortlessly capture difficult to reach areas, e.g. the interior of a car, or to add intricate detail to a large-scale 3D model. The smart combination of Ray’s long-range 3D scanning capabilities along with the convenience and precision of all of Artec’s handheld 3D scanners ensures limitless 3D scanning potential.
A wealth of integration possibilities
The head of the scanner can be mounted to a robotic arm or conveyor system for automated 3D scanning, or synced with multiple devices and used in multi 3D scanner installations.
No need for targets
As with all Artec’s full powered 3D scanners, Leo uses advanced hybrid geometry and texture tracking, meaning you can really just point at your object and shoot. No need to stick targets on it (and then remove them!)
KEY FEATURES:
> Range – Up to 110 m
> Ranging error – <0.7 mm @ 15 m
> Angular accuracy – 25 arcseconds
> Range noise, 90% reflectivity – 0.12 mm @ 15 m
> Range noise, 10% reflectivity – 0.3 mm @ 15 m
> Export formats – OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX,E57, XYZRGB, BTX, PTX, CSV, DXF, XML
SPECIFICATIONS TABLE:
> Recommended Work Range: 0.7 mm @ 15 m High Quality Mode & <0.9 mm @ 15 m High Sensitivity Mode
> Ranging error: 0.7 mm @ 15 m High Quality Mode & <0.9 mm @ 15 m
> Range noise, 90% reflectivity: 0.12 mm @ 15 m High Quality Mode & 0.25 mm @ 15 m High Sensitivity Mode
> Range noise, 10% reflectivity: 0.3 mm @ 15 m High Quality Mode & 0.7 mm @ 15 m High > Sensitivity Mode
> Angular accuracy: 25 arcsecs
> Speed, points/second: 208,000
> Scanning modes: Autonomous or via USB
> Color: Two fully integrated 5 megapixel cameras
SPECIAL FEATURES:
> High accuracy long-range laser 3D scanner, ideal for precise capture of large objects
> Submillimeter accuracy
> Scan large vehicles, pipes or buildings.
> Ideal for reverse engineering, inspection and construction.
> Scan large objects both indoors and outdoors!
> Ultra-high precision, fast laser 3D scanner with submillimeter precision.
> Cleanest 3D data capture for minimum post-processing time
APPLICATIONS:
> Industrial design and manufacturing
> Healthcare
> VR
> E-commerce
> Science and education
> Forensics
> Art and design

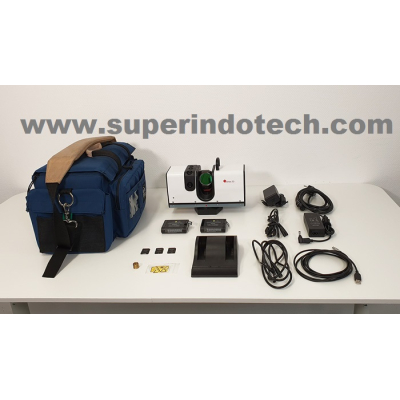

INCLUDES:
(1X) ARTEC Ray Scanner
(2X) Batteries Li-Ion 14V of 49Wh (Removable)
(1X) Power supply with connection cable to RAY
(1X) Charger for 2 batteries at the same time
(1X) USB cable to connect the scanner to a PC (3 Meter)
(1X) Tread Adapter
(2X) Micro 32 GB SD cards with an SD card backup system
(1X) Carrying Case
(1X) Transport bag
