Used FixturLaser GO Pro Basic Laser Shaft Alignment - Sale !!
The new version of Fixturlaser GO Pro comes with a hardware and software package that will save the maintenance professional’s time and hard work.
$2,680.00
Fixturlaser Go Basic Features
- Intuitive interface: Guides users throughout the measurement, step by step.
- Large Screen: Durable transreflective 4" large monochrome LDC screen.
- ICON Based Interface= NO Text: No Language barriers.
- Express ModeTm: Measurement values are registered automatically, sampling up to 2079 points in three position.
- Documentation: Name your current alignment job and save it in the memory manager. It has the ability to store 350 measurements.
- 30 mm detector: No need for rough alignment. Biggest measurement area.
- Resume function: An exceptional power management system that will resume from where you left off.
- CCD Technology: High linearity, digital signal processing provides a very high degree of fault correction.
- Pre-mounted fixtures: Speeds up mounting and packing of the fixtures.

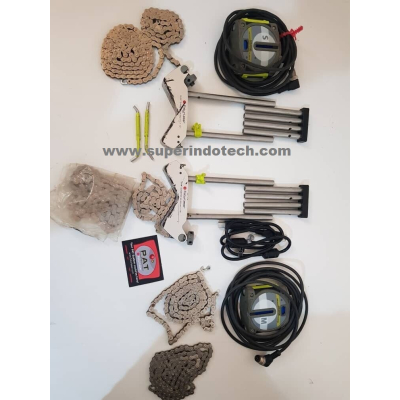

FIXTURLASER GO BASIC - COMPLETE SYSTEM
Weight (incl. all standard parts): 5,0 kg (11,0 lbs)
DISPLAY UNIT
Weight: 0.66 kg (1.46 lbs) with batteries
Dimensions: 205 mm x 116 mm x 56 mm (8.1 in x 4.6 in x 2.2 in)
Environmental protection: IP 54
Flash storage memory: 500 MB
Display: Color TFT-LCD backlit
Display size: 4” diagonal (84 x 56 mm)
Power supply: 3 x 1.5V LR-14 (C) Alkaline batteries or
1.2V NiMH HR-14 Rechargeable Nicke
Metal Hydride cells
Operating time: 30 hours typical use
SENSOR UNITS
Weight: 170 g (6,0 oz)
Dimensions: 79 mm x 77 mm x 34 mm
(3,4 in x 3,0 in x1,3 in)
Environmental Protection: IP 65
Measurement Distance: Up to 5 m (16,4 feet)
Detector: CCD
Detector Length: 30 mm (1,2 in )
Detector Resolution: 1 µm (0,04 mils)
Measurement Accuracy: 0,3% ± 7 µm (0,3% ± 0,28 mils)
SHAFT BRACKETS
Shaft diameter: Ø 25 – 175 mm (1in – 6.9in)
With extension chain
Ø 25 – 450 mm (1in – 18in)
Rods: 4 pcs 150 mm (5,9 in)
- Availability: 11 In Stock
- Model: GO Basic
-
