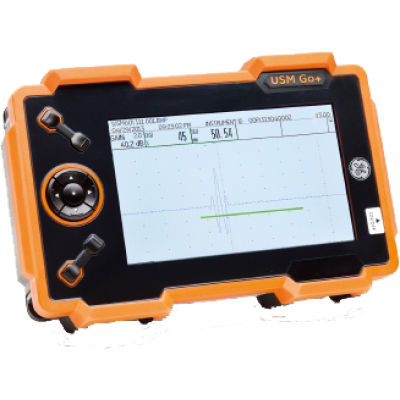

New GE Inspection Technologies USM Go Plus Flaw Detector - Sale !!
The GE USM Go portable ultrasonic flaw detector weighs less than 2 pounds, is robust and well sealed meeting IP67, and built to withstand the rigors and use in harsh industrial environments. It is simple to operate using one hand and its large, high resolution (WVGA) A-Scan display and outstanding ultrasonic performance are essential for inspections based on common codes and standards. The first choice when top UT performance, combined with ultra-portability and one-hand operation is required.
$2,250.00
The GE Inspection Technologies USM Go Flaw Detector has been ergonomically designed to provide an instrument which is light, small and easy to use in the harshest inspection environments. Navigation is simplified using the proven graphical user interface (GUI) and D-pad (arrow key) control, allowing one-handed operation and fast and accurate adjustment.
Weld Inspection
Trigonometric projections
AWS
DAC
DGS
Inspection of Forgings and Castings
Manual PRF adjustment
Phantom echo indicator
DGS
Inspection of Rails
High PRF (up to 2000 Hz)
Lightweight: 850 g (1.87 lb)
Small size and ergonomics
Inspection of Composites
RF Display
2 gates with B-start triggered with echo in gate A
TCG correction with high slope 120 dB/μs
Reflector depth indicated in layer
USM Go Standard Model (GEIT1480179) Kits:
ASME Weld
MWB 45° angle beam transducer, 4MHz frequency, 8x9mm element (0056927)
MWB 60° angle beam transducer, 4MHz frequency, 8x9mm element (0056928)
MWB 70° angle beam transducer, 4MHz frequency, 8x9mm element (0056929)
MSEB dual element straight beam transducer, 4MHz, 3.5x10mm element (0057462)
Right Angle Lemo #00 to Lemo #00 cable (022-509-819)
Right Angle Lemo #00 to Dual Lemo #00, KBA 533 cable (022-509-821)
AWS Weld
AWS Gamma angle beam transducer, 2.25MHz frequency, 16x19mm element (113-292-601)
AWS 45° wedge, 63x63mm element (118-340-104)
AWS 60° wedge, 16x16mm element (118-340-105)
AWS 70° wedge, 16x16mm element (118-340-106)
Right Angle Lemo #00 to BNC cable (022-509-822)
General Purpose
MB S straight beam transducer, 4MHz frequency, 10mm element (0057749)
Right Angle Lemo #00 to Lemo #00 cable (022-509-819)
Features:
USM Go comes with D-pad (arrow key) control
DMS Go thickness gauge upgrade available
LCD display, 800 x 480 pixels
Flip function allows for left or right hand use
Pulser (EN12668 specifications)
Simulated spike pulser mode
120 to 300V amplitude
Uni-polar square wave (optional)
120 to 300V with 10V steps pulser voltage
30 to 500ns with 20ns steps pulser width
50 or 1000 Ohms damping
Vibration and shock tested
IP67 dustproof & waterproof
What's In The Box:
(1) Lithium Ion "on-board" rechargeable battery
(1) Battery charger /AC power supply
(1) LCD screen protectors (10-pack)
(1) SD card (8GB)
(1) Transport case
(1) Hand strap
(1) Quick reference card
(1) Operating manual on CD
(1) Certificate of conformity
