Used GE Inspection Technologies USN 60 Flaw Detector - Sale !!
The The GE Inspection Technologies USN 60 flaw detector is designed for outdoor use with two independent gates to monitor amplitude and soundpath distance for both flaw detection and thickness measurement applications. It features pulse echo, dual, and thru-transmission test modes as well as measurement modes for zero-to-first and multi-echo with selectable flank or peak detection. This flaw detector also calculates weld ratings according to AWS specification D1.1 (formula D=A-B-C).
$1,790.00

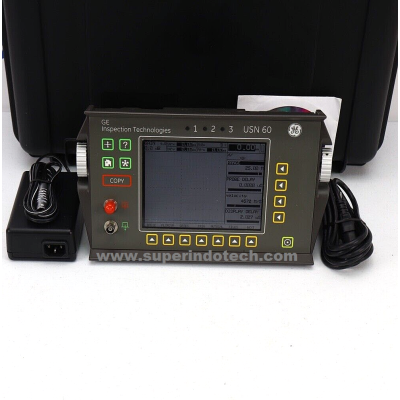

GE Inspection USN 60 Ultrasonic Flaw Detector
GE Inspection Technologies has optimized its USN 60 series for use in direct sunlight and operation at extreme temperatures. These new characteristics make the instruments ideally suited for outdoor use with its increased long battery operation time.
The combination of the rugged USN durability, 11 hours of battery operation, fast rotary knob operation, outstanding ultrasonic performance, and the モsquare wave pulserヤ form a powerful portable ultrasonic inspection tool.
Optimized outdoor use design
User Preferred Features
Wide range of applications
A 6 kHz pulse repetition frequency, real-time analog and TTL outputs makes the USN 60 flaw detectors series ideal for a wide range of automated systems testing applications. The exclusive SmartView feature displays even the shortest echoes for critical scanning and rotating part inspections.
The quality, durability, dependability and ease of use that you have come to expect of Krautkramerメs popular USN Series of instruments remains. From rugged field inspections to high resolution thin measurements, long acoustically clean materials, and immersion systems, the USN 60 flaw detector family extends the range of applications that a portable instrument can perform. Furthermore the selectable 450V Square Wave Pulser satisfies a wide range of tough-to-penetrate applications, such as difficult to penetrate metallic applications and especially non-metals inspection like composite materials.
Tools for easy weld inspection
Documentation and recording
Specifications:
What's In The Box:
(1) Lithium-ion battery pack, 12 Ah, in battery lid
(1) Power supply/charger unit
(1) Protective screen foil
(1) Operating manual
(1) CD-ROM with application for firmware upgrade download
(1) Manufacturer’s certificate
GE Inspection Technologies has optimized its USN 60 series for use in direct sunlight and operation at extreme temperatures. These new characteristics make the instruments ideally suited for outdoor use with its increased long battery operation time.
The combination of the rugged USN durability, 11 hours of battery operation, fast rotary knob operation, outstanding ultrasonic performance, and the モsquare wave pulserヤ form a powerful portable ultrasonic inspection tool.
Optimized outdoor use design
- Extreme temperature use (-20°C to 55°C /-4°F to 130°F)
- Easy to view in direct sunlight
- 11 hours battery operation
- Hi-resolution color LCD display produces モAnalog Look and Performanceヤ echo dynamics.
- 4 selectable vibrant display color schemes to match lighting conditions.
- Gates and gate functions are color coded for easy identification and fast adjustment.
User Preferred Features
- Simple operation with fast rotary knob adjustments; gain is always directly accessible with the left-hand rotary knob and lockable.
- Auto CAL makes calibration fast & easy.
- 15 Hz to 6 kHz (spike mode) PRF and 15 Hz to 2 kHz (square mode) PRF (pulse repetition frequency)
- 2 independent gates monitor amplitude and soundpath distance for both flaw detection and thickness measurement applications.
- 250 KHz to 25 MHz frequency range.
- RF display mode enhances signal evaluation and bond inspection of dissimilar materials.
- 4 selectable damping settings (50, 75, 150, 500 ohms) for optimum probe performance.
- 1 mm to 28 m (0.040ヤ to 1100ヤ) range (in steel) covers thin to lengthy acoustically clean materials.
- dB REF key evaluates subsequent echoes gain value and amplitude against the highest echo in Gate A (reference echo) when activated.
- IF (Interface) Gate Option for automatic start of the display, Gate A, Gate B, and / or DAC / TCG for immersion testing applications.
- VGA Output Option provides an easy way to connect to a PC monitor or PC projector for viewing by large audiences or training purposes.
- RF Output Option outputs the raw RF waveform via a standard Lemo connector for further analysis.
- BEA (Backwall Echo Attenuator) Option allows independent gain control of the region under Gate B for backwall echo monitoring.
- 19ヤ Rack Mount Model.
Wide range of applications
A 6 kHz pulse repetition frequency, real-time analog and TTL outputs makes the USN 60 flaw detectors series ideal for a wide range of automated systems testing applications. The exclusive SmartView feature displays even the shortest echoes for critical scanning and rotating part inspections.
The quality, durability, dependability and ease of use that you have come to expect of Krautkramerメs popular USN Series of instruments remains. From rugged field inspections to high resolution thin measurements, long acoustically clean materials, and immersion systems, the USN 60 flaw detector family extends the range of applications that a portable instrument can perform. Furthermore the selectable 450V Square Wave Pulser satisfies a wide range of tough-to-penetrate applications, such as difficult to penetrate metallic applications and especially non-metals inspection like composite materials.
Tools for easy weld inspection
- Color Leg allows easy identification of leg and skip distances for weld inspection
- GRID mode dynamically changes bands of display backgroundcolors for each leg.
- A-SCAN mode dynamically changes the color for each leg of the モliveヤ A-Scan
- Weld Rating Calculation simplifies the rating of weld indications according to AWS Specification D1.1. (Formula D = A ヨ B ヨ C).
- Trigonometric flaw location function with curvature correction automatically calculates depth, surface distance, and sound path to flaw along with the leg of the inspection when using angle beam probes. All TOF measurements can be displayed in mm, inches or µs.
- SmartView function along with variable persistence freeze modes displays the most important information (relevant shot) for a test.
- Real time (single shot) analog and TTL outputs handle a wide range of automated systems applications.
- Choose from Four Freeze Modes: ALL, Peak Std, Compare or Envelope for optimum waveform evaluation and comparison.
- Three Variable Persistence Modes are selectable in Freeze Envelope to visually assist flaw detection & evaluation for scanning and moving part inspections.
- Compare frozen reference wave-forms to live A-Scans in different colors to easily interpret test results.
Documentation and recording
- Store & preview a minimum of 200 user-named data sets with A-Scans for quick recall and instrument setup.
- UltraDOC 4 software program for bi-directional communication with a PC for easy storage of data sets with A-scan and documentation of test results.
- UltraMATEル software program simplifies the transfer, storage, analysis, and documentation of thickness data.
- Reports with A-Scans are output directly to a variety of printers.
Specifications:
Range USN 60 | 0.040ヤ to 1100ヤ (1 mm to 28 m) at steel velocity; range selectable in fixed steps or continuously variable |
Material Velocity | Continuously adjustable from 0.0098 to 0.6299 inches/µs (250 to 16,000 m/s); 65 selectable material velocities |
Display Delay | -20 to 3498 µs in steel (dependent on range) |
Probe Delay/Zero Offset | 0 to 999.9 µs |
Damping | 50, 75, 150, 500 ohms |
Gain | 0 to 110 dB adjustable in selectable steps 0.1, 0.5, 1.0, 2.0, 6.0, user definable, and locked |
Test Modes | Pulse echo, dual, and thru-transmission |
Pulser | Square wave excitation pulse |
Pulse Voltage (Square wave pulser mode) | 50 to 450 V scrollable in 10 V adjustments |
Pulse Width (Square wave pulser mode) | Tunable from 50 to 1000 ns in 10 ns adjustments |
Pulse Energy (Spike mode) | Low, High |
Pulse Repetition Frequency USN 60 | Autolow, autohigh, manually adjustable from 15 to 6000 Hz (spike mode) and 15 to 2000 Hz in square wave mode, in 5 Hz increments, external trigger (spike mode only) |
Bandwidth (amplifier bandpass) | 0.25 to 25 MHz with 10 selectable settings including broadband |
Gate Monitors | Two independent flaw gates controllable over entire sweep range |
Measurement Modes | Zero-to-first, multi-echo with selectable flank or peak detection |
Rectification | Positive halfwave, negative halfwave, fullwave, RF |
Reject (suppression) | 0 to 80% linear |
Units | Inch, millimeter, or microsecond selectable |
Operating Temperature | -20° to 55°C (-4° to 130°F); -25° to 70ºC (-13° to 158 º F ) storable |
Languages | Selectable English, German, French, Spanish, Italian, Portuguese, Norwegian, Swedish, Finnish, Danish, Dutch, Russian, Czech, Romanian, Slovakian |
Probe Connectors | BNC or Lemo |
Keypad | International symbols |
Battery Power | Lithium Ion battery pack; NiMH, NiCad or alkaline cells substitutable |
Battery Life | 11 hours on Li-Ion battery pack |
Size | 11.1ヤ W x 6.75ヤ H x 6.25ヤ D (282 x 171 x 159 mm) |
Display | 640 x 480 pixels Color LCD 132.48 x 99.36 mm |
Weight | 6.6 lbs. (3.0 kg) Li-Ion battery; 3.5 lbs.(1.6 kg) without battery |
Color Leg | Easy identification of leg and skip distances for angle beam inspection in A-scan or grid background colors |
Weld Rating Calculation | Simplifies the rating of weld indications according to AWS specification D1.1, (formula D=A-B-C) |
Dust Proof/DrippingWater Proof | As per IEC 529 specification for IP54 classification |
Compliance | EMC/EMI: EN 55011:2007, EN 61000-6-2:2005 Ultrasound: EN 12668, ASTM E317 |
What's In The Box:
(1) Lithium-ion battery pack, 12 Ah, in battery lid
(1) Power supply/charger unit
(1) Protective screen foil
(1) Operating manual
(1) CD-ROM with application for firmware upgrade download
(1) Manufacturer’s certificate
