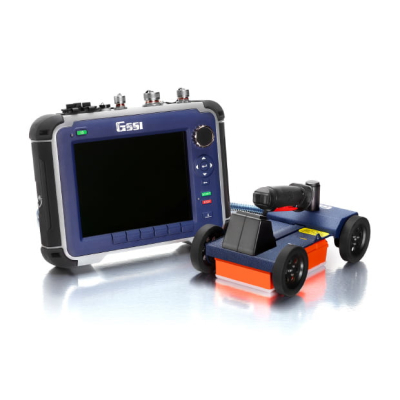

New GSSI StructureScan Pro SIR 4000 - Sale !!
StructureScan Pro is a versatile concrete inspection system offering a wide variety of antenna options for concrete and other applications. Based on the SIR 4000 controller, the StructureScan Pro provides the GPR professional with solutions to any scanning situation.
$4,115.00
StructureScan Pro
Premier ground penetrating radar system for concrete inspection
StructureScan Pro is a versatile concrete inspection system offering a wide variety of antenna options for concrete and other applications. Based on the SIR 4000 controller, the StructureScan Pro provides the GPR professional with solutions to any scanning situation.
MAX DEPTH
46 cm (18 in)
ANTENNA OPTIONS/ ANTENNA FREQUENCY
1600 MHz, 2600 MHz
WEIGHT
9.07 kg (20 lbs)
STORAGE CAPACITY
32 GB
OPTIONAL SOFTWARE
RADAN 7
ACCESSORIES
Palm Antenna, SIR 4000 stand,
SIR 4000 carry harness
The StructureScan Pro is typically used to:
Scan for rebar, post tension, conduits, and non-metallic objects
Concrete slab scanning
Locate voids
Concrete imaging
Condition assessment
Structural inspection
SYSTEM INCLUDES :
SIR 4000 Control Unit
1600 MHz or 2600 MHz antenna
Model 615 handcart with encoder
7-meter control cable
Lithium-ion battery (2)
Dual-bay battery charger
Rugged transit case
2-year warranty
Premier ground penetrating radar system for concrete inspection
StructureScan Pro is a versatile concrete inspection system offering a wide variety of antenna options for concrete and other applications. Based on the SIR 4000 controller, the StructureScan Pro provides the GPR professional with solutions to any scanning situation.
MAX DEPTH
46 cm (18 in)
ANTENNA OPTIONS/ ANTENNA FREQUENCY
1600 MHz, 2600 MHz
WEIGHT
9.07 kg (20 lbs)
STORAGE CAPACITY
32 GB
OPTIONAL SOFTWARE
RADAN 7
ACCESSORIES
Palm Antenna, SIR 4000 stand,
SIR 4000 carry harness
The StructureScan Pro is typically used to:
Scan for rebar, post tension, conduits, and non-metallic objects
Concrete slab scanning
Locate voids
Concrete imaging
Condition assessment
Structural inspection
SYSTEM INCLUDES :
SIR 4000 Control Unit
1600 MHz or 2600 MHz antenna
Model 615 handcart with encoder
7-meter control cable
Lithium-ion battery (2)
Dual-bay battery charger
Rugged transit case
2-year warranty
Locate Targets in Concrete
The StructureScan Pro locates rebar, post tension cables, PVC and metal conduits, and voids.
Premium Mobility
The rugged handcart-based system is lightweight and simple to transport. GPR is a safe technology with no site hazards or the need to close off work areas as with radiography (X-Ray).
Fully Customizable System
The StructureScan Pro comes with two antenna options; 1600 MHz or 2600 MHz. Designed to fit your needs, the StructureScan Pro is adaptable to expand survey capabilities, such as bridge and utility applications, with antenna upgrades.
Specifications
SYSTEM | SIR 4000 |
ANTENNAS | Compatible with all GSSI antennas |
NUMBER OF CHANNELS | Records data from 1 single-frequency antenna or 1 dual-frequency antenna |
DATA STORAGE | 32 GB Flash, 1 GB RAM |
DISPLAY | 10.4” LED |
GPS | Data logged internally |
DISPLAY MODES | Linescan, Full 3D |
ENVIRONMENTAL RATING | IP64 |
DATA ACQUISITION | |
DATA FORMAT | RADAN® (dzt) |
OUTPUT DATA FORMAT | 32-bit |
SCAN INTERVAL | User-selectable, up to 4000 scans/sec |
NUMBER OF SAMPLES PER SCAN | 256, 512, 1024, 2048, 4096, 8192, 16384 |
OPERATING MODES | Continuous (time) or survey wheel (distance triggered) or point mode |
TIME RANGE | 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to 126 dB Number of segments in gain curve is user-selectable from 1 to 8 |
STANDARD REAL-TIME FILTERS | Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal |
ADVANCED REAL-TIME FILTERS | Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal |
AUTOMATIC SYSTEM SETUPS | Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations |
AUTOMATIC ANTENNA RECOGNITION | Automatic recognition of Smart Antennas to allow maximum compliant transmit rate |
LANGUAGES | English, Chinese, Japanese and French |
OPERATING | |
OPERATING TEMPERATURE | -20°C to 40°C (-4°F to 104°F) |
BATTERY | Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness) |
TRANSMIT RATE | Up to 800 KHz (International) US/Canada and CE rates depend on antenna model |
INPUT/OUTPUT | |
AVAILABLE PORTS | Analog and Digital, RS232, HDMI, Ethernet to PC, USB 2.0 port and mini USB |
ETHERNET | RJ45 100BT Ethernet |
USB HOST | USB host with external keyboard support, USB flash drive support and USB HUB support |
MECHANICAL | |
DIMENSIONS | 14x10x2.75 in (36x25x7 cm) |
WEIGHT | 10 lbs (4.53 kg) including battery |
RELATIVE HUMIDITY | <95% non-condensing |
STORAGE TEMPERATURE | -40°C to 60°C (-40°F to 140°F) |
