Hamar Laser S-660 Wireless 3-Axis Shaft Alignment System - Used
Our newest offering in the shaft alignment industry, the S-660 features standard wireless communication, PDA smart phone, color software and high accuracy that makes it the best value in entry-level shaft alignment lasers. Over 45 years of laser alignment experience has gone into the design of the S-660 to produce a system that is unparalleled in the entry-level class of the laser alignment market.
$1,200.00
The S-660 offers a high-tech shaft alignment solution for a low-tech price. The system packs in the features and offers loads of “little things” that make this the best system in the entry-level end of the market. It can handle most day-to-day standard shaft alignment applications with ease and has been designed to last a long, long time.
The S-660 includes:
L-780 Dual-Fan™ Laser Head
2 Uni-Directional, Parallel Laser Fans with extremely low divergence of only 0.3 degrees (1 inch at 15 feet or 25 mm at 4.5 m) is much safer than the competitor 6 degree fans that are up to 1.5 feet (450 mm) at 15 feet.
Blinking laser beams for ambient light correction IP67 housing allows it to be submerged in water up to 3 feet (1 m).
Operating range of 15 feet (4.5 meters) from laser to target.
125-hour battery life. Can be operated while plugged into A/C charger.
Laser-On and Low Battery LED’s.
T-1280 Wireless 3-Axis Target
1-Axis 20 mm Dual-Fan™ PSDs with 1 micron resolution
<0.75% Offset Error and <1.5% Angular Error
/- 2 degrees angular measuring range.
.25” (5 mm) to 15 feet (4.5 m) operating range between target/laser.
Rotation axis accelerometer 0.1 degree resolution.
Bluetooth Class I wireless communication with range of 30 feet (10 m).
IP67 housing allows it to be submerged in water up to 3 feet (1 m).
15-hour (continuous) battery life.
Wireless Link, On-Target, Data Communication and Low Battery LED’s.
A-970 Aluminum Shaft Brackets
Set of 2 aluminum quick-connect brackets for shafts from 1.5” (38 mm) to 6” (152 mm) shaft diameter.
Set of 4 6” (152 mm) posts.
Stainless steel chain with magnetic tip to secure extra chain and protect the equipment.
Optional A-970 A Chain Bracket Upgrade includes: extra set of chain for shafts up to 12” (304 mm) in diameter and Set of 4 12” (304mm) posts.
Fits into carrying case with posts connected.

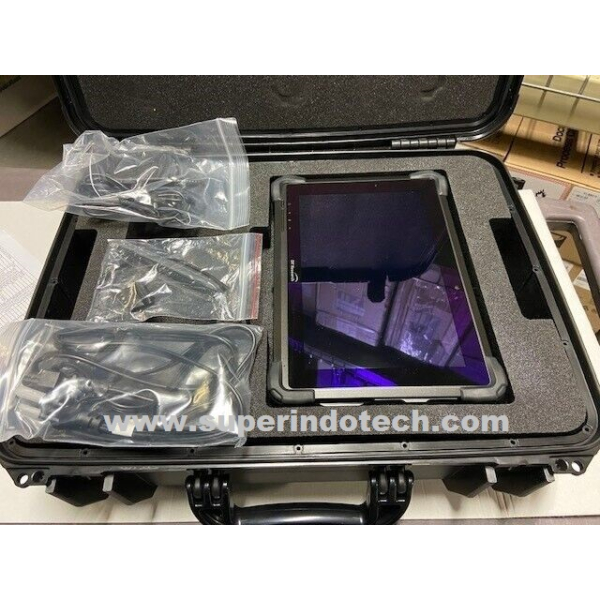

R-1342T3 10” Touchscreen Win10 Tablet Display Box
Rugged Windows 10 tablet with IP65, MIL-STD-810g & MIL-STD-461F rating.
10.1? Full-HD capacitive touch screen. Outdoor viewable 1920 x 1200 resolution.
Built-in Bluetooth 4.0 LE and Wi-Fi 802.11ac.2.4GHz / 5GHz dual band.
4GB RAM with 128GB storage to provide nearly unlimited file storage capacity.
1 full size USB 3.0 3.5 mm headset jack Smart Card/CAC Reader
Camera: 8 megapixel back camera.
Operating Temp -20°C to 60°C (-4°F to 140°F).
COUPLE6 Software and Entry Level Feature License preloaded.
S-1396EL Entry-Level Feature License for Couple6 Software
Auto Clock™ Data-Taking Mode with up to 8 data points in 360 degrees. Min of 3 points.
2-Tier, color coded recommended tolerances based on RPM.
User-defined tolerances.
Horizontal machines with coupled or uncoupled shafts.
Flip-It™ Feature that flips the screen orientation to match the view of the machine.
Thermal growth offset screen that allows you to model how thermal growth affects the alignment. Saves thermal growth values to offsets the final alignment.
Thermal Growth Foot calculator allows you to enter temperature changes at the feet to calculate coupling offset values.
Soft Foot detector with shim calculator.
Vertical Machine module.
Report module for color reports. Email PDF or Windows XPS formats.
SPECS :
Laser/Target Unit Size
4.2” x 3.3” x 1.94” (107 mm x 84 mm x 49 mm)
Housing Material
Impact resistant plastic
Detector Type & Size
1-axis PSD 20×1 mm (h) provides 2 continuously updating alignment axes (1 alignment plane).
Ambient Light Protection
Yes via blinking-laser algorithm embedded in all Stealth targets
Target Measurement Resolution
Offset: 1.0 micron (.00004”)
Angular: 0.025 mm/m (.0003”/ft.)
Target Measurement Accuracy
Offset: <0.75%
Angular: <1.5%
Angular Sensor Range
/- 2° ( /- .034”/inch or 3.4 mm/100 mm)
Laser Type
650 nm dual-fan laser with 0.5° fan <0.9mW
Communication between Target & Data Analyzer
Wireless Bluetooth® Class 2 – 2.4 ghz
Wireless Range
Up to 33 feet (10 M)
Ruggedized Display Platform
Industrial tablet with 8”/10” touchscreen. MILSPEC 810G/IP65
Rotation Sensor (3rd axis)
Accelerometer Resolution: 0.1°
Accuracy: /-1°. Measurement accuracy not affected by rotation sensor accuracy.
Environmental
IP67 (laser & target). IP65 (R-1342T2).
Bracket Set
Covers 1” (25.4 mm) to 6” (152.4 mm) diameter shafts.
Comes with 6” (152.4 mm) posts
Application Range
15’ (4.5 m) between laser and target
Operating/Storage Temperature
Laser/Target: 5°F to 140°F (-15°C to 60°C) for laser, target. 32°F to
120°F (0°C to 49°C) for R-1342CRT, -4°F to 140°F (-20°C to 60°C) for
R-1342RT, -4°F to 140°F (-20°C to 60°C) for R-1342T2
Battery Life Target
15 hours continuous use with Bluetooth® — 16 hours with backup cable. Target can be plugged into power source during use Battery status indicator for both T-1280 Target and tablet.
Battery Life Laser
150 hours continuous use. Blinking LED indicates low battery status
Battery Life Tablet
Up to 5 hours for R-1342CRT or 8 hours for R-1342RT/T2. Normal Use
