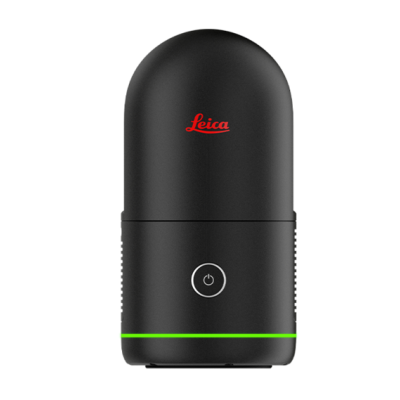

New Leica BLK360 Imaging Laser Scanner - Sale !!
The new BLK360 improves upon everything users loved about the BLK360 G1. A 360-degree, panoramic image and full-dome scan now take less than 30 seconds, making it the fastest imaging laser scanner out there. And it has better image quality, data visualization, and point cloud colorization, along with a new USB-C port for speedy data transfer All in a package that’s 20% smaller than its predecessor.
$6,700.00
The new BLK360 improves upon everything users loved about the BLK360 G1. A 360-degree, panoramic image and full-dome scan now take less than 30 seconds, making it the fastest imaging laser scanner out there. And it has better image quality, data visualization, and point cloud colorization, along with a new USB-C port for speedy data transfer All in a package that’s 20% smaller than its predecessor.
Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second. And our patented Visual Inertial System (VIS) uses onboard cameras to track the device’s position for in-field pre-registration of captured data, significantly speeding up workflows and automatically combining scan setups on-site.
Fully compatible with Leica Geosystems Cyclone suite of Reality Capture software, the new BLK360 represents a new leap forward in fully automated, ultrafast, detailed laser scanning.
BLK Live App
The BLK360 includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, and quality control. Available for iOS and Android.
Leica Cyclone REGISTER 360 Subscription
REGISTER 360 is a simplified version of Leica Geosystems Cyclone REGISTER that features an intuitive UI, guided workflows, and an easy process for sharing data downstream with more advanced tools like JetStream and TruView. Or export your cloud as a standard E57 file or Autodesk's native RCP file format.
Get started out of the box
To work with point cloud data on your computer, users can use the BLK Live app to export E57 files or subscribe to Leica Cyclone REGISTER 360 (Regular or BLK Edition). Cyclone REGISTER 360 BLK Edition is optimized for the BLK360 and provides streamlined workflows to assist new users and speed up the process for experienced users.
Software options for every kind of project
For larger projects or existing Cyclone users, Leica Geosystems Cyclone REGISTER 360, the BLK Live app, and Cyclone FIELD 360 are also available to help register your scans together and view scan data and imagery in real-time.
Leica BLK360 Specifications
GENERAL
Imaging scanner 3D scanner with integrated highspeed HDR spherical imaging system and Visual Inertial System (VIS) for real-time pre-registration
DESIGN & PHYSICAL
Housing Black anodized aluminium
Dimensions Height: 155 mm / Diameter: 80 mm
Weight 0.75 kg (0.85 kg incl. battery)
Transport cover GVP739 Transportation cover
Mounting mechanism Button-press quick release
OPERATION
Stand-alone operation One-button operation
Mobile devices BLK Live app for iOS and Android smartphones. Leica Cyclone FIELD360 app for iOS and Android tablet computers and smartphones
Wireless communication Integrated wireless LAN (802.11 b/g/n)
Internal memory SStorage for up to 1500 setups
Instrument orientation Upright and upside down
POWER
Battery type Internal, rechargeable Li-Ion battery (Leica GEB825)
Capacity Up to 70 setups per battery
SCANNING
Distance measurement system High speed time of flight enhanced by Waveform Digitizing (WFD) technology
Laser class >1 (in accordance with IEC 60825-1:2014)
Wavelength 830 nm
Field of view 360° (horizontal) / 270° (vertical)
Range min. 0.5 m - up to 45 m
Point measurement rate up to 680.000 pts/sec
Measurement modes 4 user selectable resolution settings (6/12/25/50 mm @ 10 m)
IMAGING
Camera System 13 Mpixel 4-camera system captures 104 Mpx raw data for calibrated 360° x 270° spherical image
Speed < 8 sec. for full spherical LDR image at any light conditions
< 20 sec. for full spherical 5-brackets HDR image at any light conditions
PERFORMANCE
Data acquisition < 20 sec. for complete full dome scan and spherical LDR image at 50 mm @ 10 m resolution with automatic tilt measurements
3D point accuracy 4 mm @ 10 m
Real time pre-registration Automatic point clout alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit
ENVIRONMENTAL
Robustness Designed for indoor and outdoor use
Operating temperature 0° C to 40° C
Dust/Humidity Solid particle/liquid ingress protection IP54 (IEC 60529)
DATA ACQUISITION
Data transfer Wireless and USB 3.0
Desktop software Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition)
Cloud software HxDR Digital Reality: cloud-based digital reality platform
INCLUDED :
BLK360 Laser Scanner
3x Batteries
Multicharger
Transportation Case
USB-C Cable
Microfiber cloth
Documentation
BLK live app .e57 single scan export
Also you can check product : Used Leica RTC360 3D Laser Scanner - Sale !!
Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second. And our patented Visual Inertial System (VIS) uses onboard cameras to track the device’s position for in-field pre-registration of captured data, significantly speeding up workflows and automatically combining scan setups on-site.
Fully compatible with Leica Geosystems Cyclone suite of Reality Capture software, the new BLK360 represents a new leap forward in fully automated, ultrafast, detailed laser scanning.
BLK Live App
The BLK360 includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, and quality control. Available for iOS and Android.
Leica Cyclone REGISTER 360 Subscription
REGISTER 360 is a simplified version of Leica Geosystems Cyclone REGISTER that features an intuitive UI, guided workflows, and an easy process for sharing data downstream with more advanced tools like JetStream and TruView. Or export your cloud as a standard E57 file or Autodesk's native RCP file format.
Get started out of the box
To work with point cloud data on your computer, users can use the BLK Live app to export E57 files or subscribe to Leica Cyclone REGISTER 360 (Regular or BLK Edition). Cyclone REGISTER 360 BLK Edition is optimized for the BLK360 and provides streamlined workflows to assist new users and speed up the process for experienced users.
Software options for every kind of project
For larger projects or existing Cyclone users, Leica Geosystems Cyclone REGISTER 360, the BLK Live app, and Cyclone FIELD 360 are also available to help register your scans together and view scan data and imagery in real-time.
Leica BLK360 Specifications
GENERAL
Imaging scanner 3D scanner with integrated highspeed HDR spherical imaging system and Visual Inertial System (VIS) for real-time pre-registration
DESIGN & PHYSICAL
Housing Black anodized aluminium
Dimensions Height: 155 mm / Diameter: 80 mm
Weight 0.75 kg (0.85 kg incl. battery)
Transport cover GVP739 Transportation cover
Mounting mechanism Button-press quick release
OPERATION
Stand-alone operation One-button operation
Mobile devices BLK Live app for iOS and Android smartphones. Leica Cyclone FIELD360 app for iOS and Android tablet computers and smartphones
Wireless communication Integrated wireless LAN (802.11 b/g/n)
Internal memory SStorage for up to 1500 setups
Instrument orientation Upright and upside down
POWER
Battery type Internal, rechargeable Li-Ion battery (Leica GEB825)
Capacity Up to 70 setups per battery
SCANNING
Distance measurement system High speed time of flight enhanced by Waveform Digitizing (WFD) technology
Laser class >1 (in accordance with IEC 60825-1:2014)
Wavelength 830 nm
Field of view 360° (horizontal) / 270° (vertical)
Range min. 0.5 m - up to 45 m
Point measurement rate up to 680.000 pts/sec
Measurement modes 4 user selectable resolution settings (6/12/25/50 mm @ 10 m)
IMAGING
Camera System 13 Mpixel 4-camera system captures 104 Mpx raw data for calibrated 360° x 270° spherical image
Speed < 8 sec. for full spherical LDR image at any light conditions
< 20 sec. for full spherical 5-brackets HDR image at any light conditions
PERFORMANCE
Data acquisition < 20 sec. for complete full dome scan and spherical LDR image at 50 mm @ 10 m resolution with automatic tilt measurements
3D point accuracy 4 mm @ 10 m
Real time pre-registration Automatic point clout alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit
ENVIRONMENTAL
Robustness Designed for indoor and outdoor use
Operating temperature 0° C to 40° C
Dust/Humidity Solid particle/liquid ingress protection IP54 (IEC 60529)
DATA ACQUISITION
Data transfer Wireless and USB 3.0
Desktop software Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition)
Cloud software HxDR Digital Reality: cloud-based digital reality platform
INCLUDED :
BLK360 Laser Scanner
3x Batteries
Multicharger
Transportation Case
USB-C Cable
Microfiber cloth
Documentation
BLK live app .e57 single scan export
Also you can check product : Used Leica RTC360 3D Laser Scanner - Sale !!
- Availability: 17 In Stock
- Model: BLK360
-
Brand:
