New Proceq UT8000 Ultrasonic Flaw Detector - Sale !!

Portable ultrasound flaw detector for different types of material and components. Delivering fully traceable inspection data and rapid report creation.
$1,860.00
Qty:

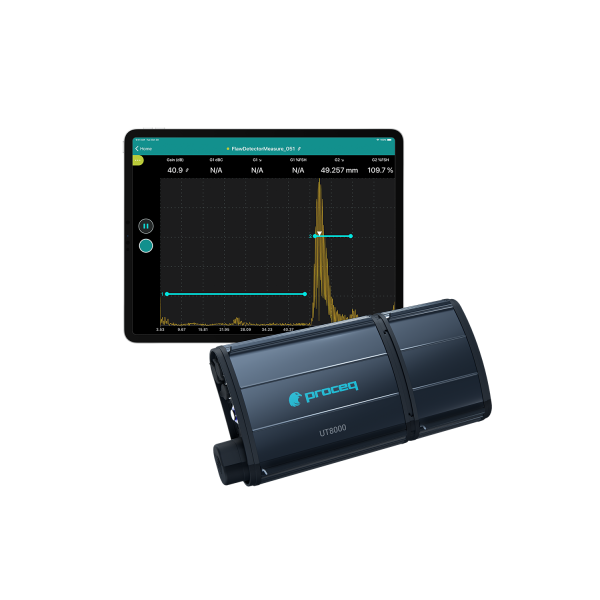

The Proceq UT8000 represents a breakthrough in inspections with ultrasonic testing for detecting flaws such as cracks and voids in metals and composites. The Swiss Made, rugged, IP67-rated base unit is built for extreme levels of portability and comfort, from the benchtop of your lab to rope inspections in the toughest of places. Thanks to its sophisticated electronics that deliver cutting-edge bandwidth and signal-to-noise ratio, you can keep your probes and procedures.

Connect the powerful base unit to your iPad* and get to the real work faster. Our Proceq Flaw Detector Live app enhances your productivity with intelligent software features, such as the straightforward, gesture-driven calibration procedure, the built-in indication table, and the ability to rewind time for each indication. Review your measurements and communicate findings and insights enriched with voice, photo, and text annotations that deliver end-to-end traceability and peace of mind.

Software for Proceq Flaw Detector App
Software / Workspace App
Tech Specs
Automated calibration
Velocity, zero offset

Test modes
Pulse echo, dual, through transmission or grid

Units
Millimeters, inches, or microseconds

Range
3 – 11760 mm at 5900 m/s

Velocity
100 – 10000 m/s

Zero offset
0 – 50 mm

Display delay
up to full range

Refracted angle
0° – 90° in 1° increments

Measurement gates
2x, fully independent

Gate start
Variable over entire displayed range

Gate height
Variable, 1% – 100% full-screen height, in increments of 1%

Alarms
Positive and negative threshold/curve

Measurement display locations
Up to 5 locations (manual or auto selection)

Echo-to-echo
Standard gate 2 – gate 1

DAC/TCG
Standard, up to 10 points, 110 dB dynamic TCG range

Special
DAC modes: Custom DAC (up to 6 curves), 20% – 80% view
UT8000 Tech Specs
Sensor / Instrument
Tech Specs
Configuration
1 UT channel

Transducer Socket
Lemo 00

Pulse Voltage
100 to 400 V (square pulse)

PRF
2000 Hz

Gain Range
0-110 dB

Bandwidth
0.2 - 20MHz

Display
Any compatible Apple® iPad (iOS 11 and higher)

Memory
Up to 1 TB (depending on the iPad model)

Connections
Encrypted Wi-Fi connection to iPad

Signal Enhancement
Digital and analogue filters, rejection, averaging

Architecture
1 channel

Digitizing Frequency
125 MHz

Supported Scans
A-Scan, Grid

Measurements
Path length, depth, surface distance, DAC, AWS

Report Generation
Indication table, HTML export

Encoder
Ready

Languages
English, German, Italian, French, Spanish, Chinese, Japanese, Korean, Russian

Battery
Removable pack, 6x AA (NiMH), flight-safe

Battery Life
5 Hrs

Special Features
IP67



  • Availability: 12 In Stock
  • Model: UT8000
  • Brand: Proceq
