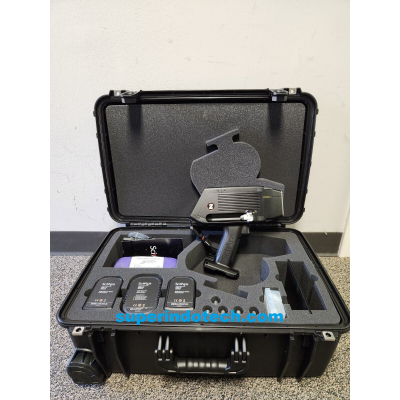

Used SciAps Z-901 Li Lithium Analyzer Handheld LIBS Analyzer - Sale !!

The world’s only handheld that analyzes lithium in rocks, ores, and powders.The Z-901 features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.In use globally for lithium exploration projects, with no travel restrictions or licensing headaches.
$11,550.00
Qty:
The world’s only handheld that analyzes lithium in rocks, ores, and powders.
In use globally for lithium exploration projects, with no travel restrictions or licensing headaches.

Exacting elemental analysis
Factory calibrated for lithium in pegmatite, clays, and mica-schists, including relevant base elements in the 380 - 680 nm range.

Microanalysis capability with 100 um laser spot size. On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.

SciAps also offers the Z-903, containing a third spectrometer to extend the analytical range down to 190 nm for users testing brines for other elements, including boron, magnesium, calcium, and potassium.

Engineered for field and lab

SciAps LIBS series handheld analyzers, at just 3.87 lbs. (1.75 kg) with battery, have an internal camera for precise targeting of analysis locations; a macro camera for photo-documentation of samples, reading bar codes and QR codes; a patented “sample sensor” that allows Class 1 operation (subject to LSO approval); high-resolution, rear-facing display for easy viewing; rugged metal body for maximum durability; a narrow snout for difficult-to-access test locations; and user-replaceable argon that provides hundreds of tests at pennies per test. Pair with Profile Builder software for PC or tablet and achieve full bench top functionality.

Intuitive operations

Android operating system and app-based software assure quality testing by every operator. Built-in Wi-Fi and Bluetooth, with GPS capability, allow users to print, email, and connect to virtually any information management system for real-time, full-featured reporting. Automatically merge XRF and LIBS tests with SciAps Cloud Services. Easily manage operations from anywhere.

Weight
3.87 lbs. (1.75 kg) with battery

Processing Electronics
ARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC

Calibration Check
316 stainless steel standard for automated calibration and wavelength scale validation.

Dimensions
10.75 x 2.375 x. 8.625 inches

Data Storage
Results storage: 32 GB SD card

Spectral Range
380 nm – 680 nm

Display
3.5-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing

Drift Correction
On-board automated drift correction software with factory-provided or user-provided reference materials.

Sample Viewing
Integrated camera and laser target indicator for viewing sample before and during analysis provide proper sample alignment. Includes second “macro camera” for scanning QR or bar codes and for photo-documentation and report generation.

Power
On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.

Regulatory
CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.

Laser Raster
On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.

Connectivity
Built on Google’s Android platform for real-time data exporting, including built-in Wi-Fi (IEEE 802.11b/g/n), Bluetooth (BR/EDR BLE), GPS and USB-C to connect to virtually any information management system.

Security
Password protected. Multi-user support with configurable access settings.

Atmosphere
SciAps proprietary Opti-Purge inert argon environment that improves spectral signal-to-noise ratio and performance in UV range.

  • Availability: 6 In Stock
  • Model: Z-901 Li
  • Brand: SciAps
