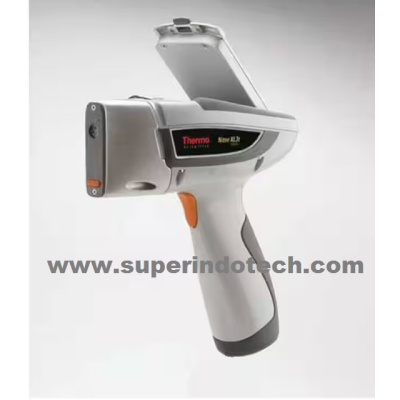

The Niton XL3t Ultra Analyzer is ideal for specific applications where faster analysis and lower detection limits are needed. The Ultra advantage is a 45mm² Silicon Drift Detector (SDD) that delivers vast improvements in sensitivity and measurement times– as much as 10-times faster than conventional Si-PIN detectors, and up to 3-times more precise than conventional silicon drift detectors. With its faster analysis, higher precision, and the ability to measure light elements without helium or vacuum assistance, it is the ideal instrument for the following applications:

Oil and Gas Exploration

• Upstream exploration and production

• Rapid, on-site chemical analysis of rocks, cuttings, and cores that can be used for identifying formations and determining mineral composition of the rock

• Inferring mineralogical properties favorable to oil and gas production from data collected in real-time

Mining Exploration

• Early stage exploration: soil survey and outcrop evaluation

• Advanced exploration and drilling: trend analysis to identify decreasing or increasing pattern of elements of interest to make “continue” or “stop” drilling decisions onsite

• Ore deposit modeling/mapping

Positive Material Identification (PMI)

• Fast, accurate alloy analysis and positive alloy grade identification

• Incoming materials inspection, in-process verification, and final product inspection

• Recover lost material traceability

• Isolate finished welds to validate filler material and dilution

• Confirm the integrity of process process piping, valves and reaction vessel

  FULL SPECS :




  Applications	Sample identification and positive material identification
  Analytical Range	Standard Analytical Range: Up to 30 elements from Mg to U (varies by application)Optional Light Elements; Ultra-low light element detection via He purge
  Available Analytical Modes	Mode (Varies by application)Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Soil, Mining, TestAll™Plastic Modes: RoHS Plastics, Toy & Consumer Goods Plastics, TestAll, Painted ProductsCustom Modes: Upon request (based on application feasibility)
  Data Storage	Internal >10,000 readings with spectra
  Data Transfer	USB, Bluetooth, and RS-232 serial communication
  Description	Niton XL3t Ultra Analyzer
  Detector Type	Geometrically Optimized Large Area Drift Detector
  Display Type	Tilting, color, touch-screen display
  Item Description	Niton XL3t Ultra Analyzer
  Height (English)	3.75 in.
  Height (Metric)	95.5 mm
  Length (English)	9.60 in.
  Length (Metric)	244 mm
  Width (English)	9.05 in.
  Width (Metric)	230 mm
  Optional Accessories	WeldSpot 3 mm small-spot collimation, portable test stands, stationary (bench-top) test stand, mobile test stand, Thermo Scientific™ Extend-a-Pole™ extension pole, weld mask, Thermo Scientific™ HotFoot™ hot surface adapter, soil testing guard
  Security Features	Password-protected user security
  Standard Accessories	Integrated CCD camera for locating and storing images, locking carrying case, shielded belt holster, two lithium-ion battery packs, 110/220 VAC battery charger/AC adaptor, PC connection cables (USB and RS-232)Thermo Scientific™ Niton Data Transfer (NDT™) PC software, safety lanyard, check samples/standards
  System Details	Resolution: < 185 eV @ 60,000 cps @ 4μ sec shaping time
  Tube Type	Ag anode (6-50 kV, 0-200 µA max)
  Tube Voltage	6 to 50 kV
  Weight (English)	3 lbs.
  Weight (Metric)	1.3 kg
  System Electronics	533 MHz ARM 11 CPU300 MHz dedicated DSP80 MHz ASICS DSP for signal processing4096 channel MCA32 MB internal system memory/128 MB internal user storage
  Data Entry	Touch-screen keyboardUser-programmable pick listsOptional wireless remote barcode reader
  Licensing	Varies by region. Contact your local distributor.
  Dimensions (L x W x H)	9.60 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm)
  Certifications/Compliance	CE, RoHS
  Unit Size	Each

• Availability: 16 In Stock
• Model: Niton XL3t Ultra
• Brand:
