Used FARO Focus 3D X 330 HDR Laser Scanner - Sale !!
FARO Focus3D X 330 HDR Laser Scanner is the high-speed 3D scanner for extended ranges. It can scan objects up to 330 meters away even in direct sunlight, delivering realistic and true-to-detail scan results.With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
$3,480.00
FARO Focus3D X 330 HDR Laser Scanner is the high-speed 3D scanner for extended ranges. It can scan objects up to 330 meters away even in direct sunlight, delivering realistic and true-to-detail scan results.
With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
With its increased range and scan quality, the FARO Focus3D X 330 HDR considerably reduces the effort involved in measuring and post-processing. The 3D scan data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics, industrial manufacturing and land surveying. Distance dimensions, area and volume calculations, analysis and inspection tasks and documentation can thus be carried out quickly, precisely and reliably.
HDR (High Dynamic Range) PHOTO OVERLAY
With the Focus3D HDR functionality, challenging lighting situations will never subtract users’ scan results. Predefined HDR profiles increase the picture quality recorded in very bright or dark environments
HD PHOTO RESOLUTION
The increased camera resolution of Focus3D X 330 HDR delivers extraordinary color overlays for scanned point clouds. This improves the visualization of important details on site.
OUTDOOR SCANNING CAPABILITY
The Focus3D X 330 HDR is able to perform fast and highly precise scanning in direct sunlight.
EXTENDED SCANNING - 330M RANGE
The Focus3D X 330 HDR can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.
EASY POSITIONING - INTEGRATED GPS RECEIVER
With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications
BENEFITS
Safe and fast as-built data capturing with superior color detail
Reliable life-like visualization, even under extreme lighting conditions and onenormous distance
Reduced complexity by integrated scanning and imaging workflow for all kinds of measurements even in challenging environments
Increased onsite productivity due to one person operation
Revolutionary price/performance ratio,as all-in-one device
TECHNICAL DATA
Ranging Unit:
Unambiguity Interval: By 122 till 488 Kpts/sec at 614m; by 976 Kpts/sec at 307m
Range Focus3D X 330: 0.6m – 330m indoor or outdoor with upright incidence to a 90% reflective surface
Measurement Speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
Ranging Error1
: ±2mm
Color Unit:
Resolution: Up to 70 megapixel color
Dynamic Color Feature: Automatic adaption of brightness
Parallax: Co-axial design
Deflection Unit:
Vertical Field of View (vertical/horizontal): 300° / 360°
Step Size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0.009° (40,960 3D-Pixel on 360°)
Max. Vertical Scan Speed: 5,820rpm or 97Hz
Laser (Optical Transmitter):
Laser Class: Laser class 1
Wavelength: 1550nm
Beam Divergence: Typical 0.19mrad (0.011°) (1/e, halfangle)
Beam Diameter at Exit: Typical 2.25mm (1/e)
Data Handling and Control:
Data Storage: SD, SDHC™, SDXC™; 32GB card included
Scanner Control: Via touch-screen display and WLAN
New WLAN Access: Remote control, scan visualization are possible
on mobile devices with Flash®
Multi-Sensor:
Dual Axis Compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
Height Sensor: Via an electronic barometer the height relative to a fixed point can be detected
and added to a scan
Compass: Electronic compass gives the scan an orientation. A calibration feature is included.
GPS: Integrated GPS receiver

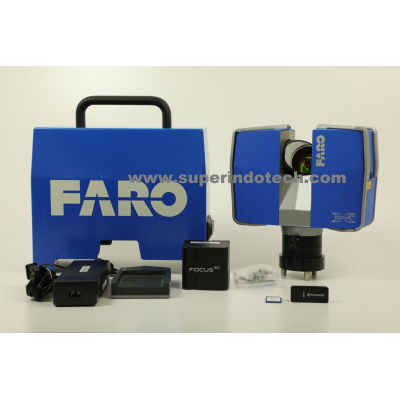

Includes:
Faro Scene Version 7 Software License USB Dongle
Power Block Battery and 1 extra Power Block Battery
Power Dock & Charger
12v Car adaptor
6 200MM Target spheres with tripod mount kits
12 80MM Target, trajectory spheres
Compact tripod & Manfrotto folding dolly for Tripod
32GB SD Card, SD Card Reader and Card Cover
Pelican Case
Fresh certificate of calibration will sent to new owner
