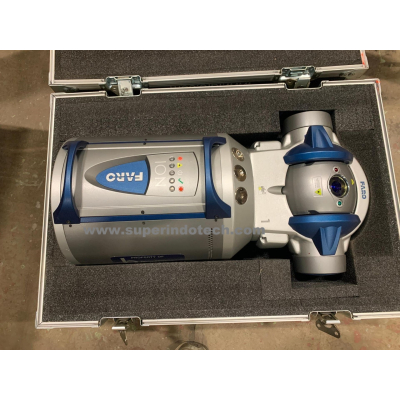

Used FARO ION Laser Tracker - Sale !!
The FARO Laser Tracker ION is an extremely accurate, portable coordinate measuring machine that enables you to build products, optimize processes, and deliver solutions by measuring more quickly, simply and precisely than previously possible. The ION is the most accurate laser tracker available based on the most common types of measurement applications. It also features a longer measurement range, lighter weight, and contains the fastest, most sophisticated distance measuring system: Agile Absolute Distance Meter (aADM)
$3,100.00
The FARO Laser Tracker ION is an extremely accurate, portable coordinate measuring machine that enables you to build products, optimize processes, and deliver solutions by measuring more quickly, simply and precisely than previously possible. The ION is the most accurate laser tracker available based on the most common types of measurement applications. It also features a longer measurement range, lighter weight, and contains the fastest, most sophisticated distance measuring system: Agile Absolute Distance Meter (aADM)
Common Applications
Alignment: Real-time feedback of object positioning
Installation: Lay out / level machine foundation
Part Inspection: Digital record of actual vs nominal data
Tool Building: Set up and inspect tools with only one person
Reverse Engineering: Acquire high accuracy digital scan data
Features
0.049mm volumetric accuracy at 10m
110m diameter range
Agile ADM instant beam acquisition
As light as 17.7kg
High performance, real-time dynamic measurements
Agile ADM: Acquire targets even if they are moving; no need to switch between ADM and IFM systems
SelfComp: Automatically tunes Laser Tracker, parameters to ensure high accuracy
Versatile Mounting Options: Mounts vertically, horizontally or upside down, providing versatility in tight or congested areas
Instant-On Laser: No warm-up of the laser tube is required
Smart Warm-Up: Accelerates the stabilization time in order to minimize the initial temperature changes impact on measurements
Integrated Weather Station: Monitors and compensates for changes in temperature, air pressure and humidity
Integrated Precision Level: Establishes level to gravity within the measurement job
Specifications:
Size
Laser Tracker Measuring Head 311(W) x 556(H) mm
Master Control Unit 282(L) x 158(D) x 214(H) mm
Weight
Laser Tracker Measuring Head 17.7 kg
Laser Tracker Measuring Head with IFM 19.5 kg
Range
Maximum working range
55 m with select targets
40 m Standard 1.5” & 7/8” SMRs
30 m Standard 1/2” SMR
Minimum working range 0m (0ft)
Horizontal envelope /- 270°
Vertical envelope 125° ( 72.5° to -52.5°)
Environmental
Altitude -700 to 2,450m (-2,297 to 8,038ft) with integrated weather station
Humidity 0 to 95% non-condensing
Operating temperature -15°C to 50°C (5°F to 122°F)
Distance Measurement Performance
AgileADM
Resolution: 0.5μm (0.00002in)
Accuracy (MPE): 16μm 0.8μm/m (0.00063in 0.0000096in/ft)
Sample rate: 10,000/sec
R0 parameter (MPE): 16μm (0.0006in)
Interferometer
Resolution: 0.158μm (0.000006in
Accuracy (MPE): 4μm 0.8μm/m (0.00016in 0.0000096in/ft)
Maximum radial velocity: 4m/sec (13.1ft/sec)
R0 parameter (MPE): 16μm (0.00063in)
Angle Measurement Performance
Angular accuracy (MPE) 20μm 5μm/m (0.00079in 0.00006in/ft)
Precision level accuracy /- 2 arcseconds
Maximum angular velocity 180°/sec
Probe Type
Diameter 1.5 in., 0.875 in., or 0.5 in.
Reflector Type Spherically Mounted Retroreflector (SMR)
Sampling Strategy
Acquisition time 1 sec
Frequency 1000 points/sec
INCLUDED:
FARO Laser Tracker ION head with Absolute Distance Meter (ADM) and Precision Level Sensor
FARO Laser Tracker ION Master Control Unit (MCU)
MCU-to-tracker cable
Remote air temperature sensor
Cable cover
Cross-wired ethernet cable
Power cord (USA/Canada)
Calibration Tripod with adaptor for a 1.5” SMR (SMR not included)
Quick-release mandrel for standard 3.5” - 8 TPI ring
Certificate of calibration
Shipping case
